Description

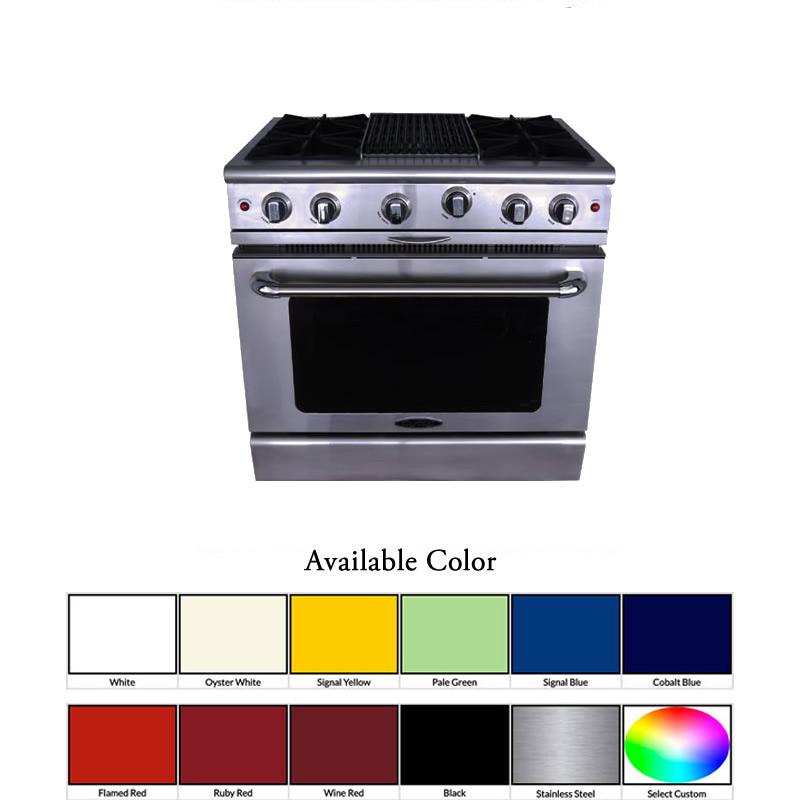

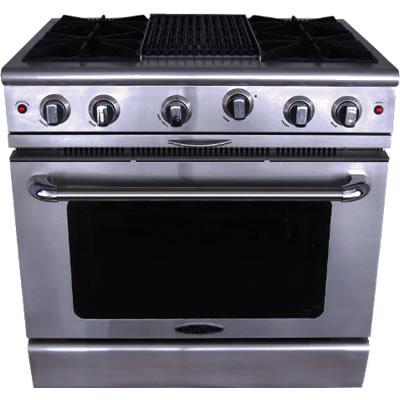

Capital Culinarian Series 36" gas range. This range features 4 open burners with 12" BBQ girll. It alos features convection bake, broil and full extension drip trays on EZ-Glides™.
1 / 1
MCOR364BN
Features
LARGE OVEN CAPACITY
FLEX-ROLLS OVEN RACKS
Additional Features
EZ-GLIDES™
Full extension removable drip trays mounted on ball bearing rails.
STAY-COOL™ KNOBS
Die cast chrome-plated metal knobs with black trims.
Specifications
General
Series Name
CULINARIAN
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• Three (3) 25, 000 BTU open style burners turn down to a True Simmer
• One (1) 8,000 BTU Small Pan Burner turns down to an extra low simmer
• (1) 12" 18,000 BTU BBQ Grill Burner with Cast Iron Porcelain Coated Grates Hybrid Radiants and Stainless Steel Cover
• One (1) 8,000 BTU Small Pan Burner turns down to an extra low simmer
• (1) 12" 18,000 BTU BBQ Grill Burner with Cast Iron Porcelain Coated Grates Hybrid Radiants and Stainless Steel Cover
Burners
Open
Other
Grill
Oven
Capacity (cu. ft.)
4.9
Number of Ovens
Single
Features
Convection
Yes
Digital Temperature Display
No
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
No
Additional Information
• Manual clean
• Convection oven
• BAKE
• CONVECTION BAKE
• BROIL
• 30,000 BTU oven burner for uniform baking
• 18,000 BTU Infrared Broil burner with Inconel Mesh construction
• Titanium speck porcelain oven interior
• 5 Rack Positions w/ 2 Heavy Duty Racks provided
• Broil pan provided
• 1-1/4" diameter professional-style handle
• Heavy-duty oven door hinges
• Extra large viewing window
• Bright 40W oven lights
• Stay-Cool™ die cast, chrome plated metal knobs
• Professional style heavy duty cast iron grates with easy to clean matte porcelain finish
• Natural Gas: 7" WC input pressure: 5" WC pressure regulator provided
• Liquid Propane: 11" WC input pressure: 10" WC pressure regulator provided
• Full extension Drip Trays on EZ-Glides™
• Convection oven
• BAKE
• CONVECTION BAKE
• BROIL
• 30,000 BTU oven burner for uniform baking
• 18,000 BTU Infrared Broil burner with Inconel Mesh construction
• Titanium speck porcelain oven interior
• 5 Rack Positions w/ 2 Heavy Duty Racks provided
• Broil pan provided
• 1-1/4" diameter professional-style handle
• Heavy-duty oven door hinges
• Extra large viewing window
• Bright 40W oven lights
• Stay-Cool™ die cast, chrome plated metal knobs
• Professional style heavy duty cast iron grates with easy to clean matte porcelain finish
• Natural Gas: 7" WC input pressure: 5" WC pressure regulator provided
• Liquid Propane: 11" WC input pressure: 10" WC pressure regulator provided
• Full extension Drip Trays on EZ-Glides™
Drawer Features
Indicator Light
No
Electrical Information
Information
120
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
28.37 inch(es) / 72.07 cm
Weight
479.99 lb(s) / 217.72 kg
Additional Dimensions
• Oven Dimensions: 27" W x 15" H x 21"
• Cutout Dimension: 36-1/8"W X 24"D (std)
• For more information refer to dimension guide
• Cutout Dimension: 36-1/8"W X 24"D (std)
• For more information refer to dimension guide
Shipping Dimensions
Weight
520 lb(s) / 235.87 kg
Warranty
Warranty
• ONE (1) Year full parts and labor covers entire product with the exception of painted or decorative parts listed below*. (Light bulbs covered for 60 days after installation.) Standard shipping only. Expedited shipping will be at customers' expense
• *Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this timeframe. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
• *Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this timeframe. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
