KVUB600DSS
Season Saving
Description

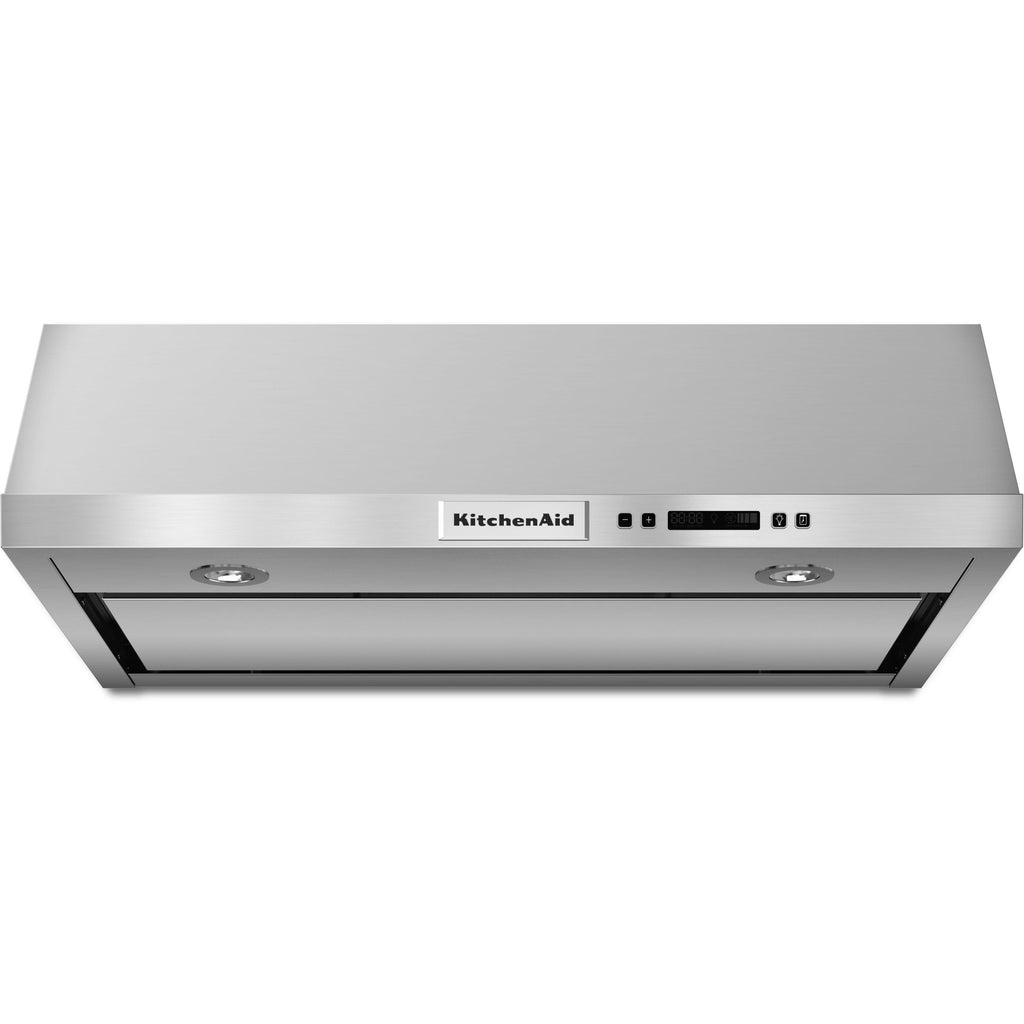

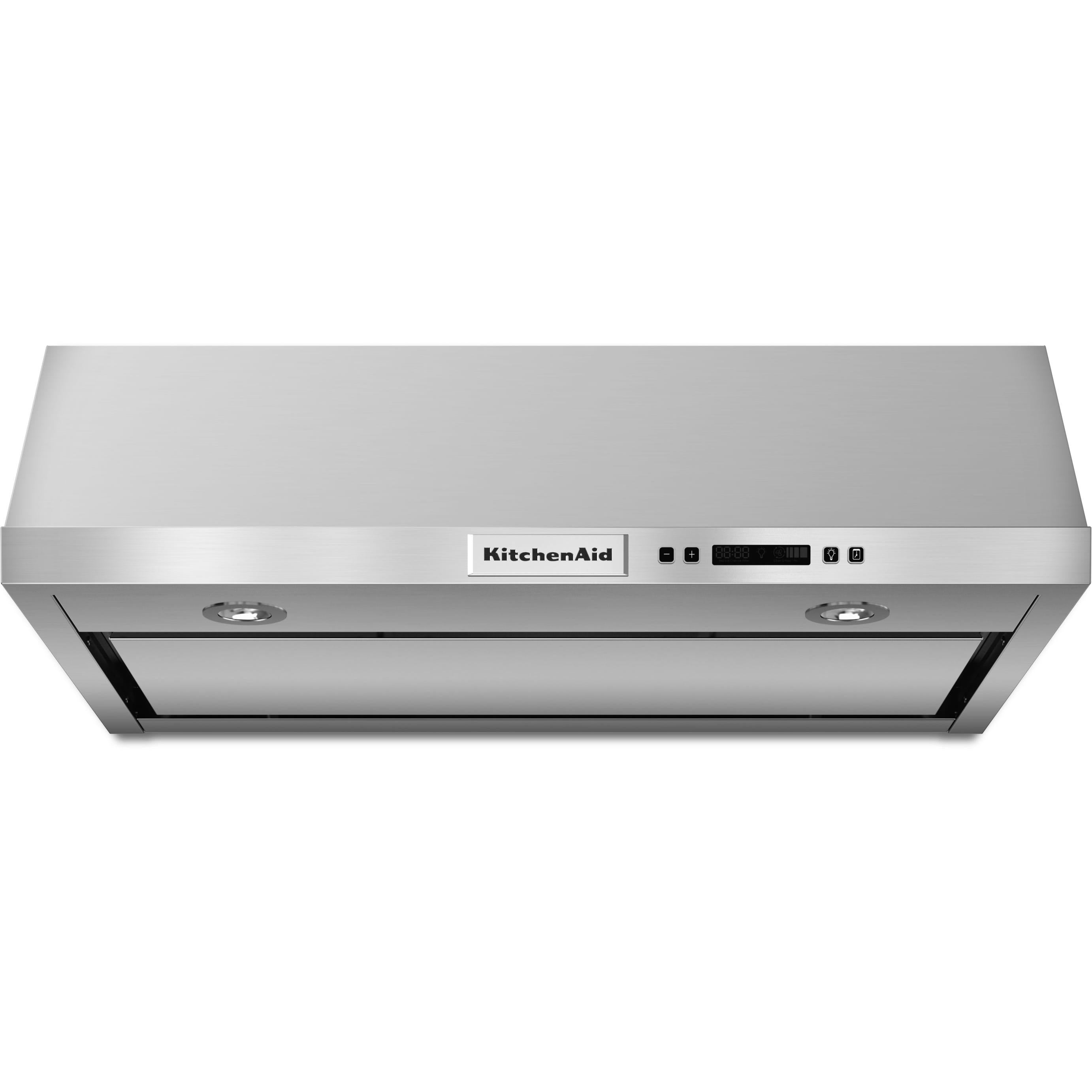

The power of a 4-speed motor adds to the precision of this under-the-cabinet ventilation system that pairs well with most 30-inch cooktops and ranges. The under-the-cabinet design allows you to hide ductwork inside cabinetry for a more built-in look.
1 / 1
KVUB600DSS
Features
600 CFM/65K BTU THRESHOLD
Allows installation over any KitchenAid regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
PERIMETER VENTILATION
Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
PROGRAMMABLE OFF FUNCTION
Can be set to automatically turn off after a period of time.

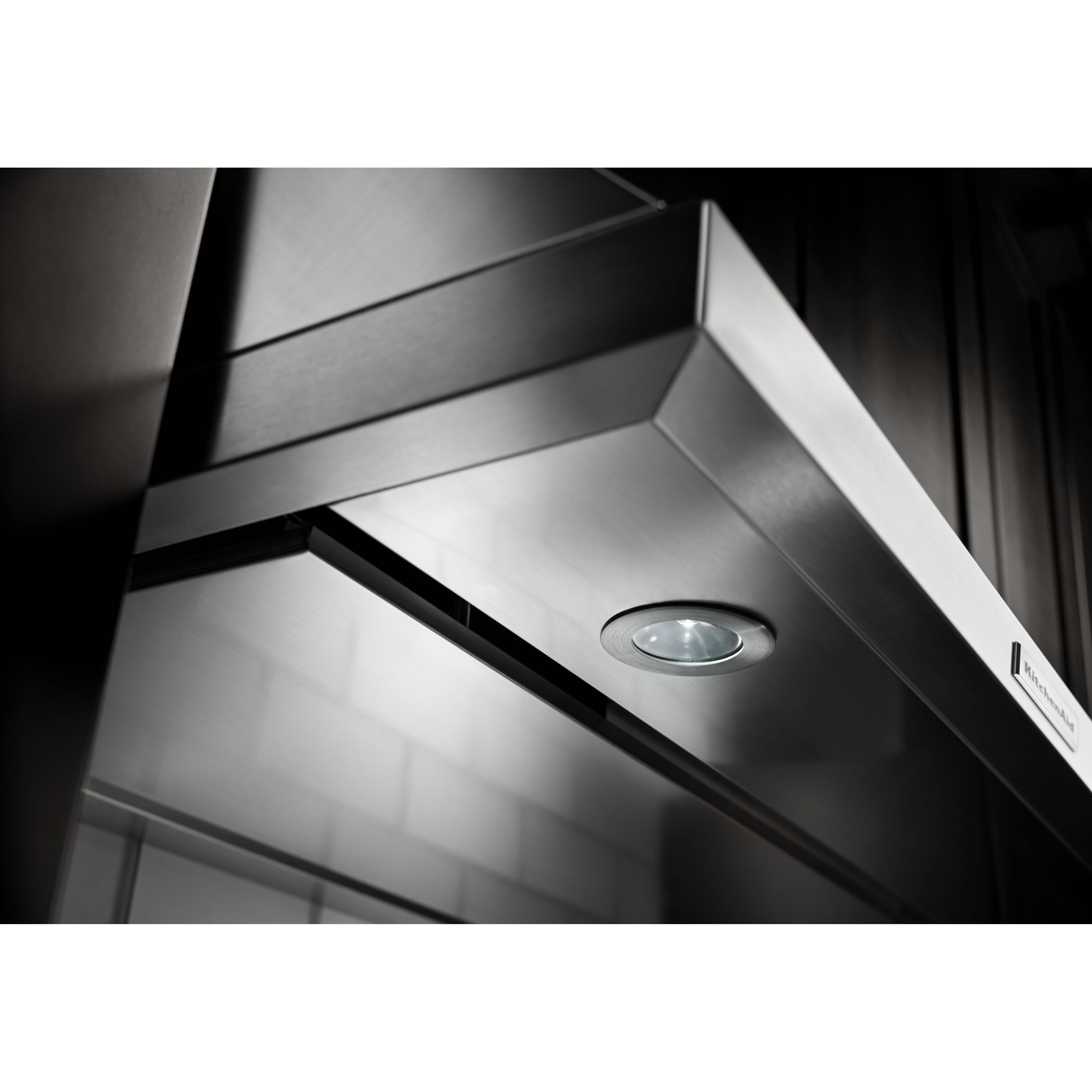

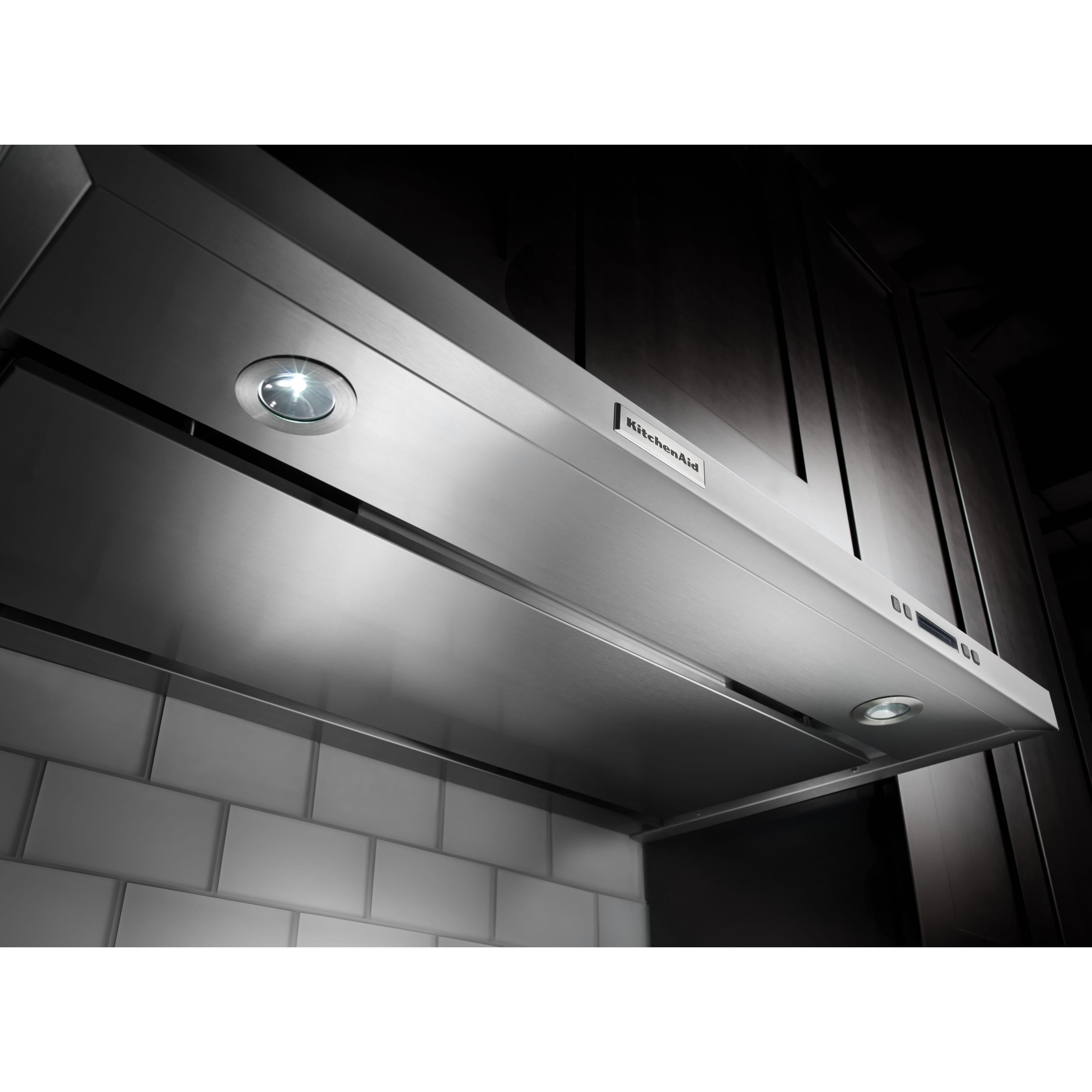

LED TASK LIGHTS
Provide extra lighting over the cooking surface to help in the cooking process.

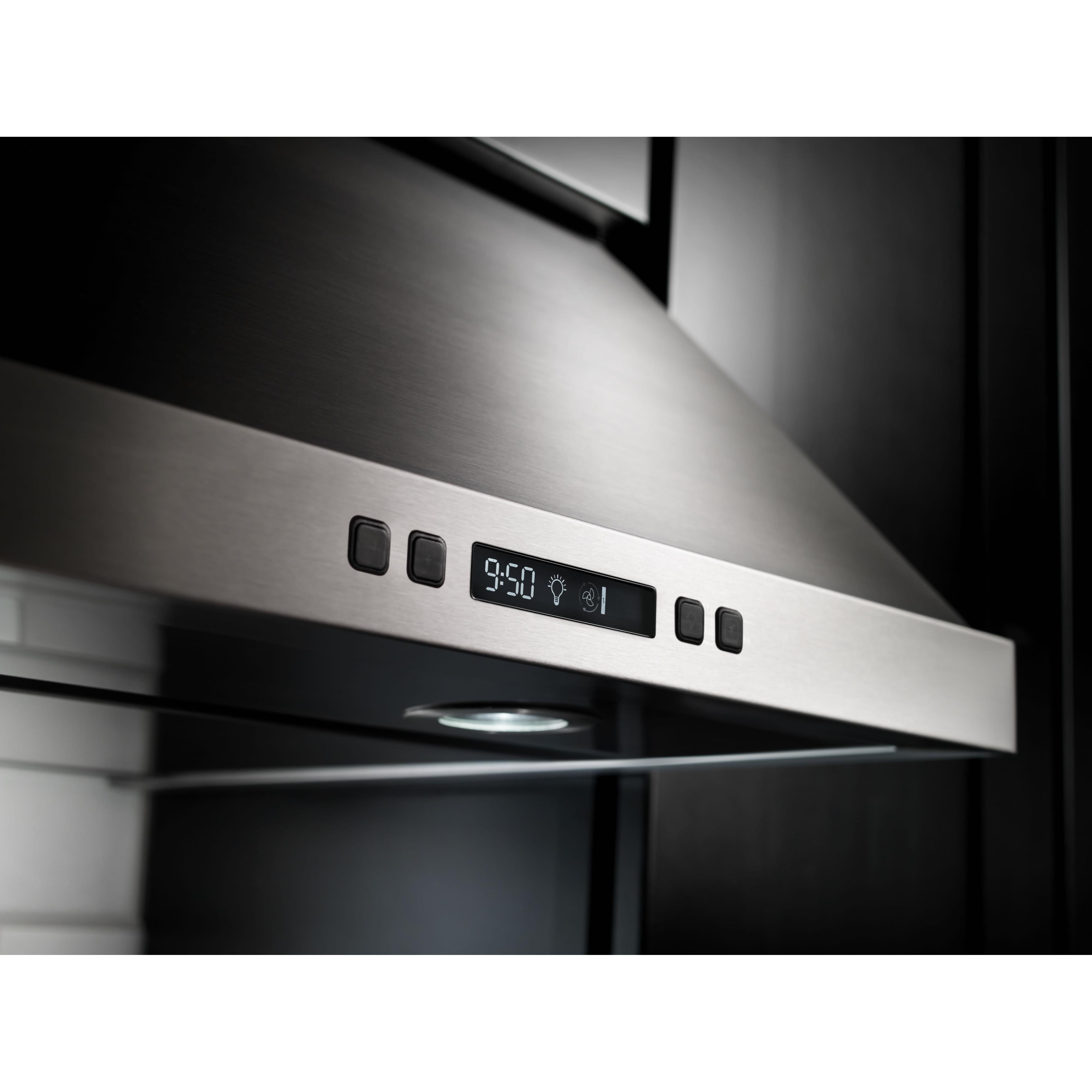

4-SPEED ELECTRONIC TOUCH CONTROL WITH LED DISPLAY
Provides sleek, visual confirmation of your ventilation selections, settings, and filter status.
WHISPER QUIET® SYSTEM @ 44 DBA (1.3 SONES) AT LOW SPEED
Ensures that the ventilation system operates at a quiet level so it can be used while entertaining. At maximum speed, sound level is 68 dBA (7.0 sones).
DISHWASHER SAFE GREASE FILTERS
Filter reduces steam, grease, and odor to help avoid contact with ceilings and countertops. The design increases filtration by obstructing the path of vented air to help capture more steam, grease, and odors as they are drawn through the vent.
EASY IN-LINE CONVERSION
Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
Specifications
General
Blower Included
Yes
Airflow
585 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Wi-Fi
No
Dishwasher-Proof Filters
Yes
Speeds
4
Additional Information
• Electronic LCD control
• Removable grease filter
• LED task light
• Whisper Quiet® System
• Sones with High Speed: 8 (Horizontal) & 7.5 (Vertical)
• Removable grease filter
• LED task light
• Whisper Quiet® System
• Sones with High Speed: 8 (Horizontal) & 7.5 (Vertical)
Electrical Information
Information
120
Certifications and Approvals
Energy Star Certified
No
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
9 inch(es) / 22.86 cm
Depth
19.75 inch(es) / 50.17 cm
Shipping Dimensions
Width
34 inch(es) / 86.36 cm
Height
24 inch(es) / 60.96 cm
Depth
13 inch(es) / 33.02 cm
Weight
39.99 lb(s) / 18.14 kg
Warranty
Warranty
Limited 1 year parts and labor.
UPC
UPC#
883049328157
