Description

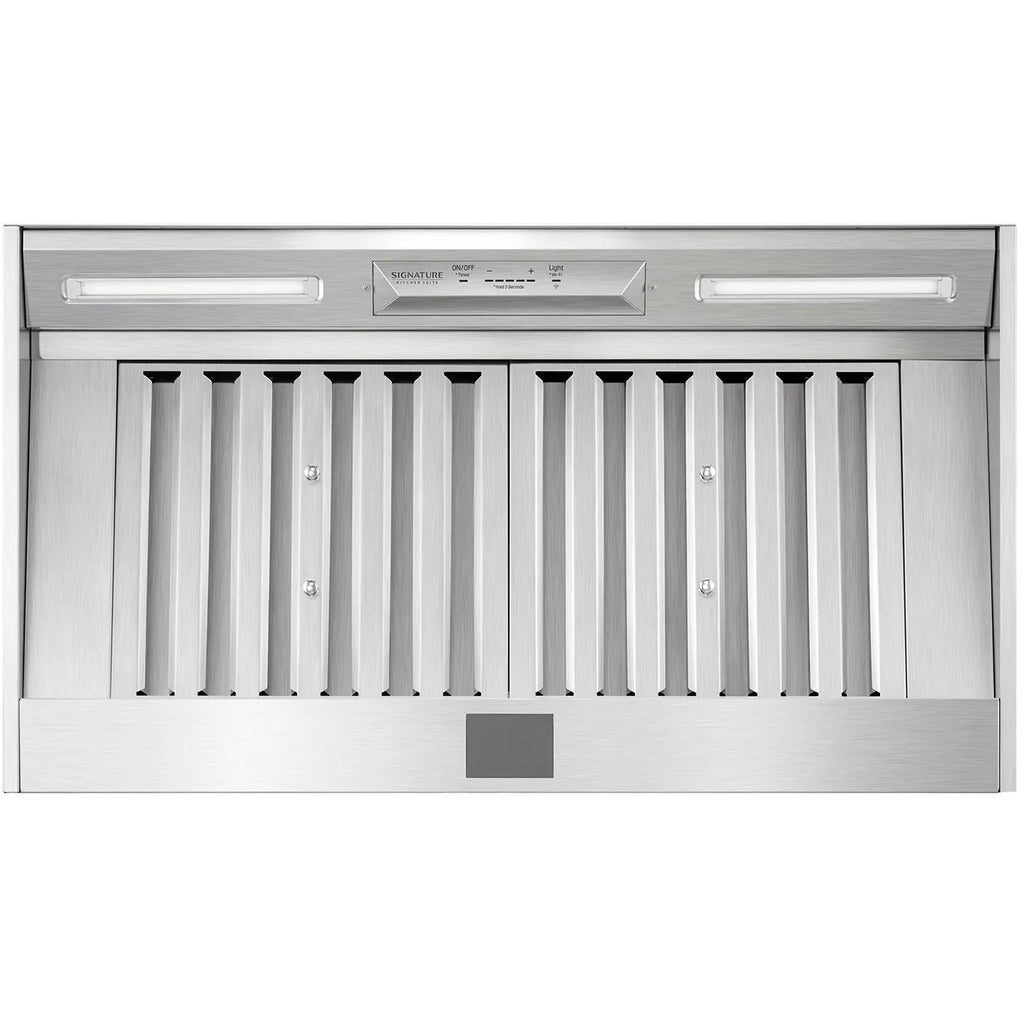

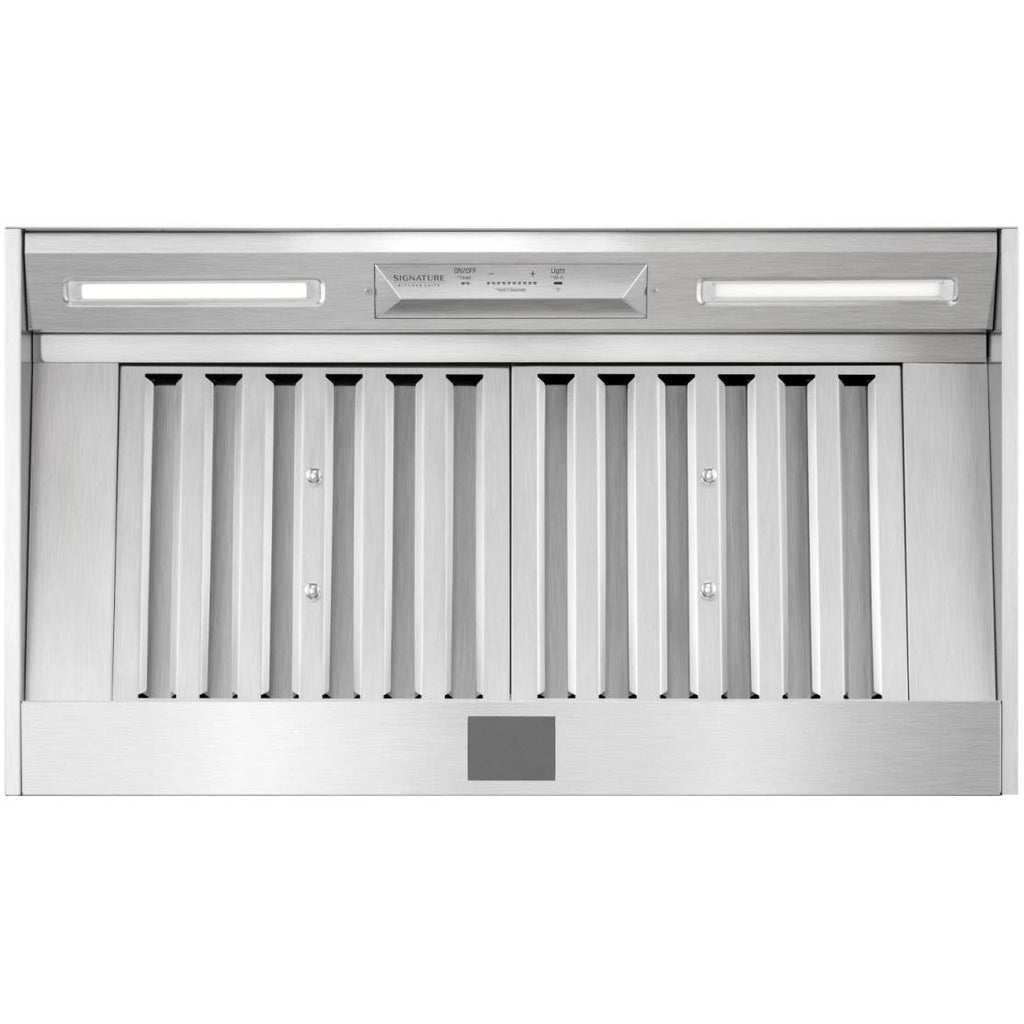

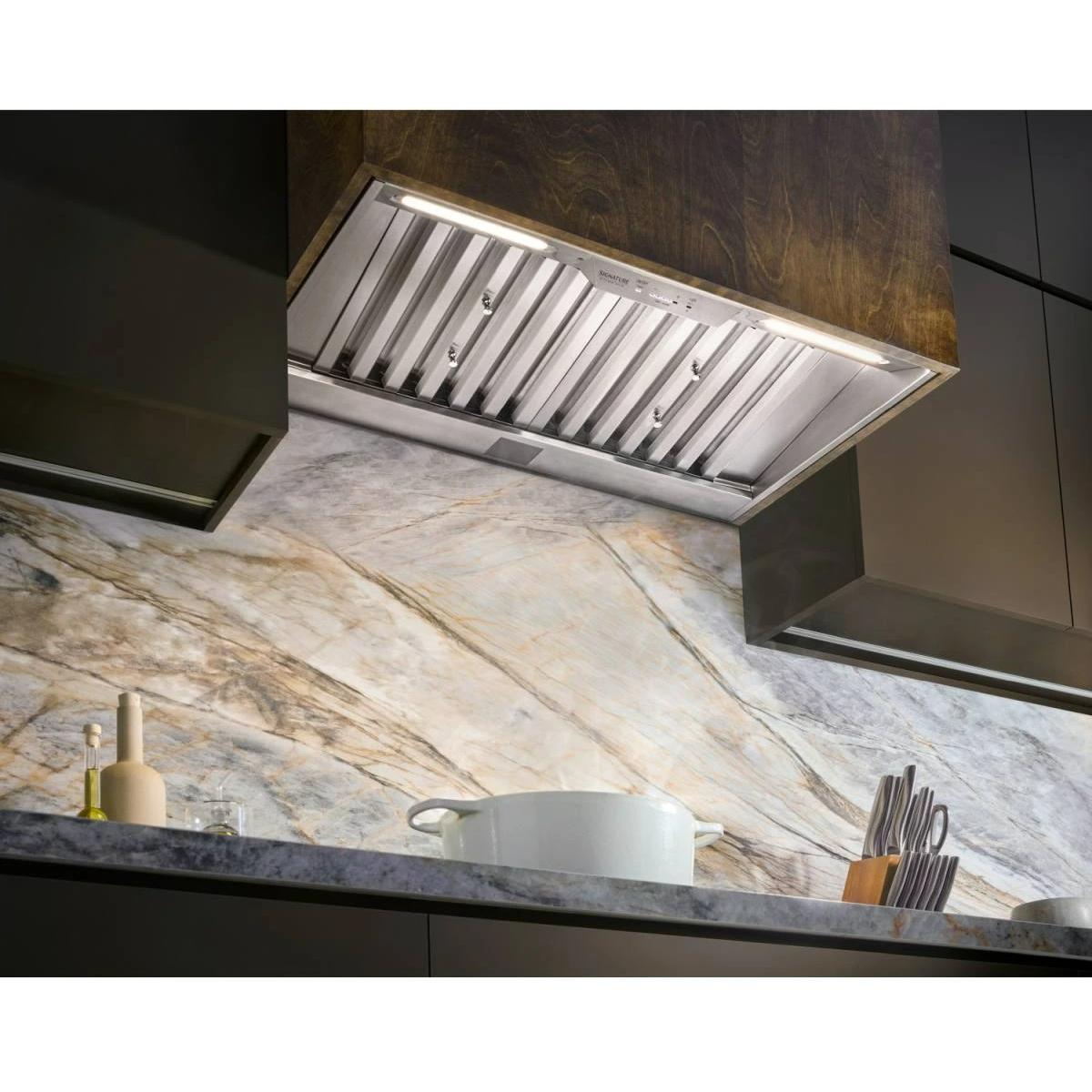

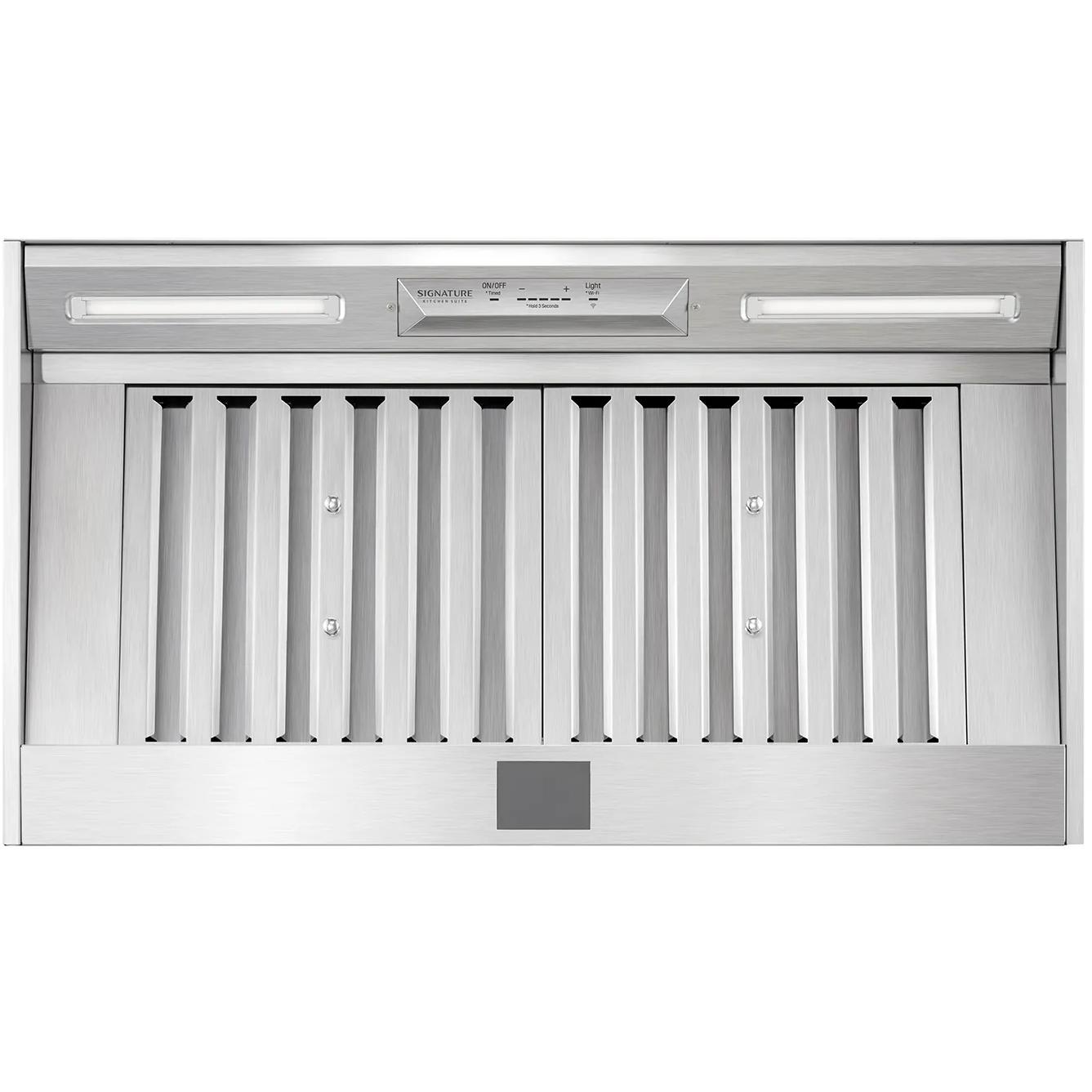

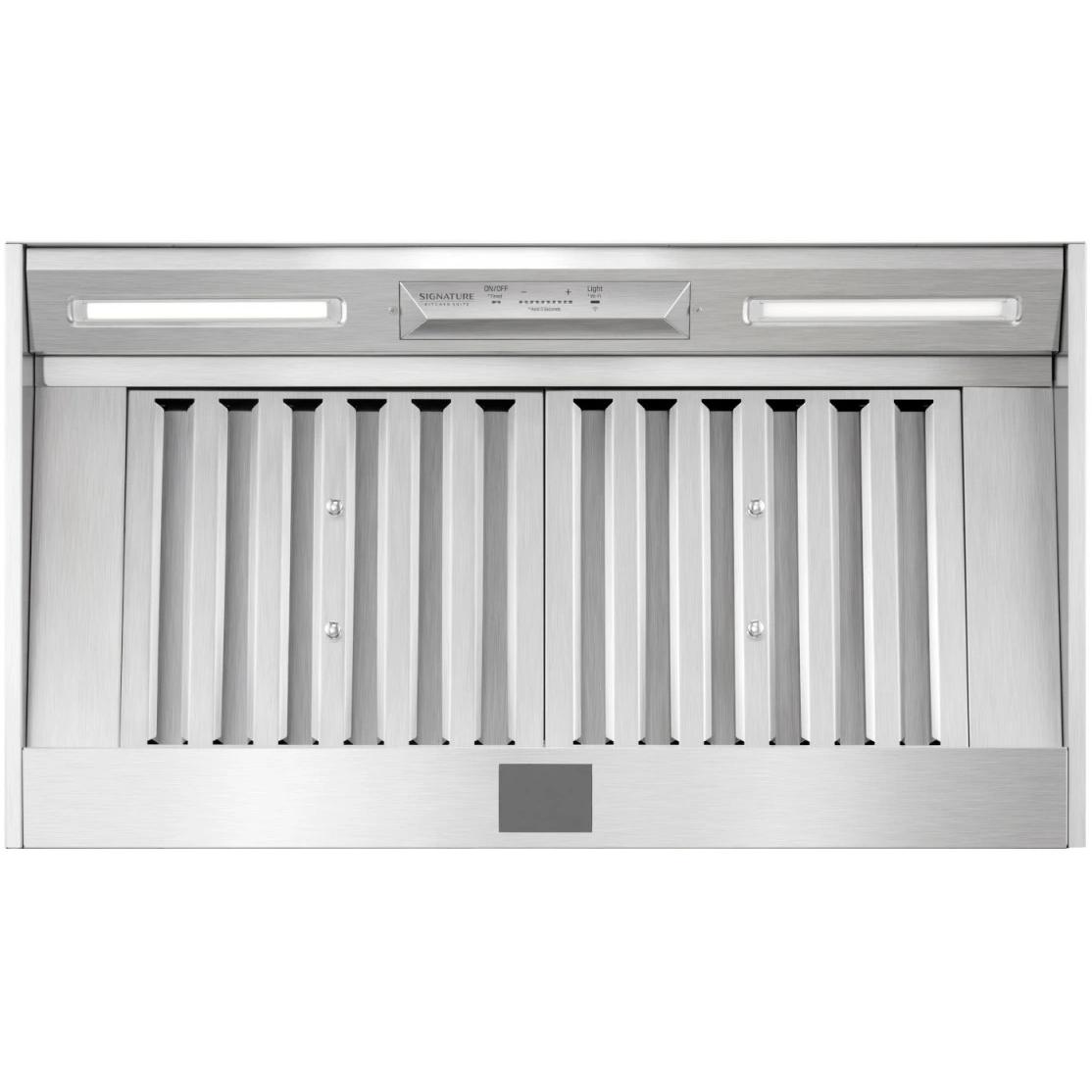

Signature Kitchen Suite 36-inch Insert Hood. Every meal is made better with Dual Level LED lighting and a five-speed blower delivering CFMs from 200-600 - compliant with local standards without sacrificing power or design. Dishwasher-safe stainless steel baffle filters make easy work of smoke and odor removal, complemented by filter clean reminders for optimal performance after 30 hours of use. Utilize Wi-Fi connectivity to sync this smart hood with the cooktop for automatic fan and burner synchronization. Manage air movement, LED settings, and hood functions conveniently through the ThinQ® App.
1 / 1
SKSHI3601S
Features
DUAL LEVEL LED LIGHTING
Dual-level LED lighting illuminates the cooking surface with a brilliant glow. The LED lights are energy-efficient and have a long life.
EASY-TO-CLEAN BAFFLE FILTERS
Effectively remove smoke and odors with the dishwasher safe, stainless steel baffle filters. After 60-hours of use, the filter clean reminder will activate, ensuring filters are always performing at their best.
WI-FI ENABLED FOR CONNECTIVITY
Connect the hood and cooktop for automatic communication with each other so the fans and burners are synchronized. Utilize the ThinQ® App to monitor and control air movement, operate the LED lights and turn the hood on and off.
VMAX™ TECHNOLOGY (VARIABLE MAXIMUM CFM)
The hood provides a wide range of maximum CFMs from 290 through 600 CFM to meet local requirements, without having to compromise power or design.
Specifications
General
Airflow
600 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Technologies
• Wi-Fi Enabled for ThinQ® Control with iPhone / Android App
• Remote Operations
• VMAX™ Technology
• Remote Operations
• VMAX™ Technology
Ducting Information

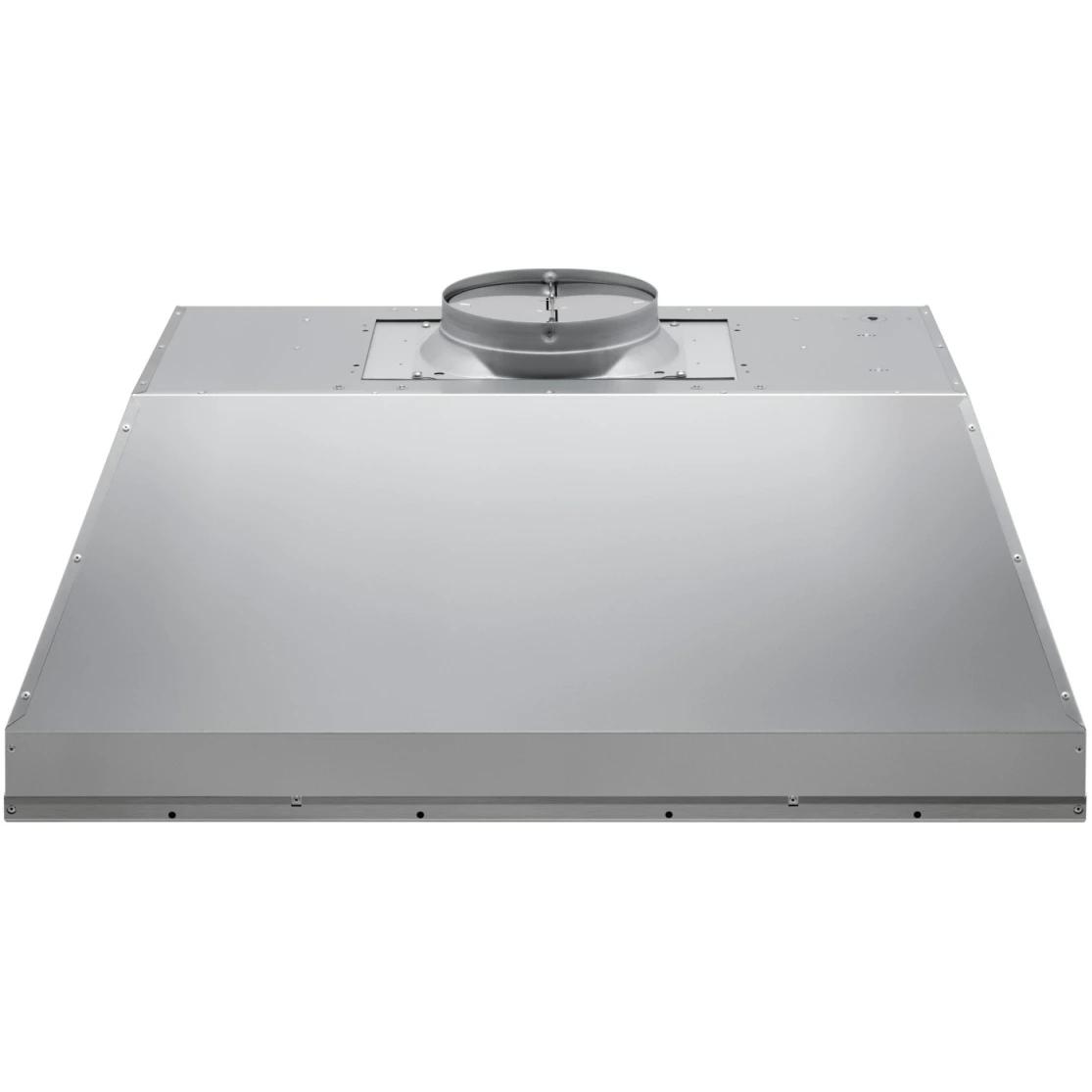

Vertical Discharge: 8" Round
Speeds
• Internal Blower (Included): 200-600 CFM, 1-6 Sones
• Speed Levels: 5
• Variable Max. CFM Set at 390: 200-390 CFM, 1-4 Sones, 3 Speeds
• Variable Max. CFM Set at 290: 200-290 CFM, 1-3 Sones, 2 Speeds
• Speed Levels: 5
• Variable Max. CFM Set at 390: 200-390 CFM, 1-4 Sones, 3 Speeds
• Variable Max. CFM Set at 290: 200-290 CFM, 1-3 Sones, 2 Speeds
Additional Information

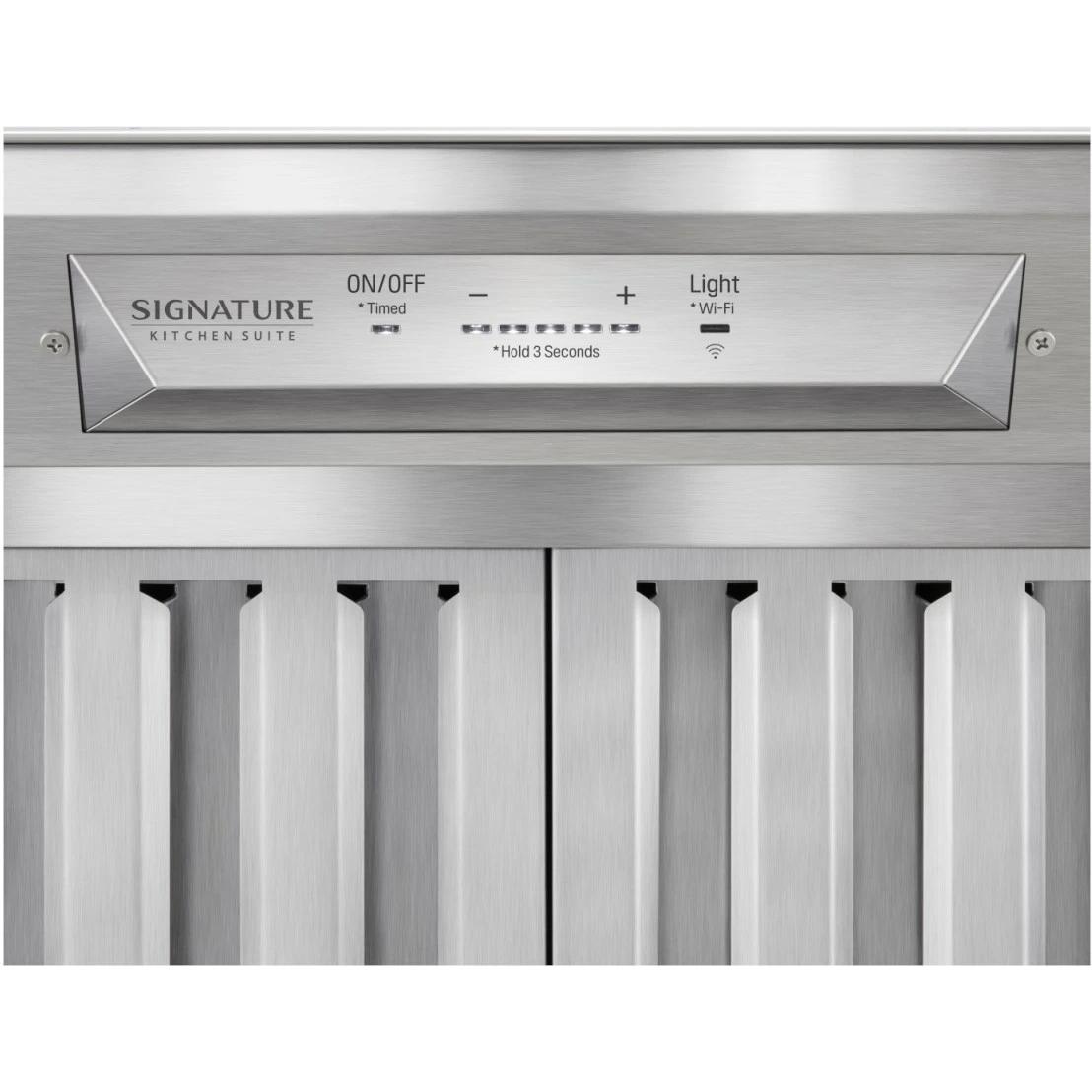

• Electronic Touch Controls
• Auto Delay-Off
• Dual-Level Lighting
• Lighting Type: LED
• Dishwasher Safe Filters: 2 Baffle
• Auto Delay-Off
• Dual-Level Lighting
• Lighting Type: LED
• Dishwasher Safe Filters: 2 Baffle
Electrical Information
Information
• Total Connect Load: 120 VAC, 60 Hz, 4 Amp
• Circuit Breaker Size (Min.): 15 Amp
• Circuit Breaker Size (Min.): 15 Amp
Certifications and Approvals
Information
UL
Dimensions
Class Width
36"
Width
34.37 inch(es) / 87.31 cm
Height
12 inch(es) / 30.48 cm
Depth
19.25 inch(es) / 48.9 cm
Weight
41.8 lb(s) / 18.96 kg
Additional Dimensions
Mounting Height Above 36" High Cooktop / Range: 26" Min. – 36" Max.
Shipping Dimensions
Weight
50 lb(s) / 22.68 kg
Warranty
Warranty
Limited 3 Years Parts and Labor
