JDH248C2AS
Season Saving
Description

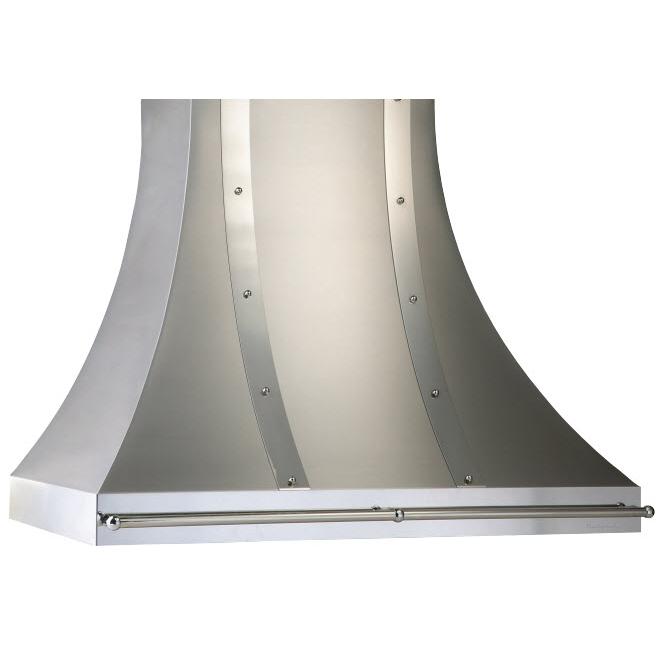

This Vent-A-Hood 48" Designer Series wall mounted hood features a 600 CFM ventilation, LED lighting and a Magic Lung® blower.
1 / 1
JDH248C2AS
Features
MAGIC LUNG®
The patented Magic Lung® blower system sets Vent-A-Hood® apart. You shouldn’t settle for anything less than the Magic Lung® because it is quiet, efficient, easy-cleaning, fire-safe, and powerful.
Specifications
General
Series Name
Designer
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Technologies
Magic Lung®

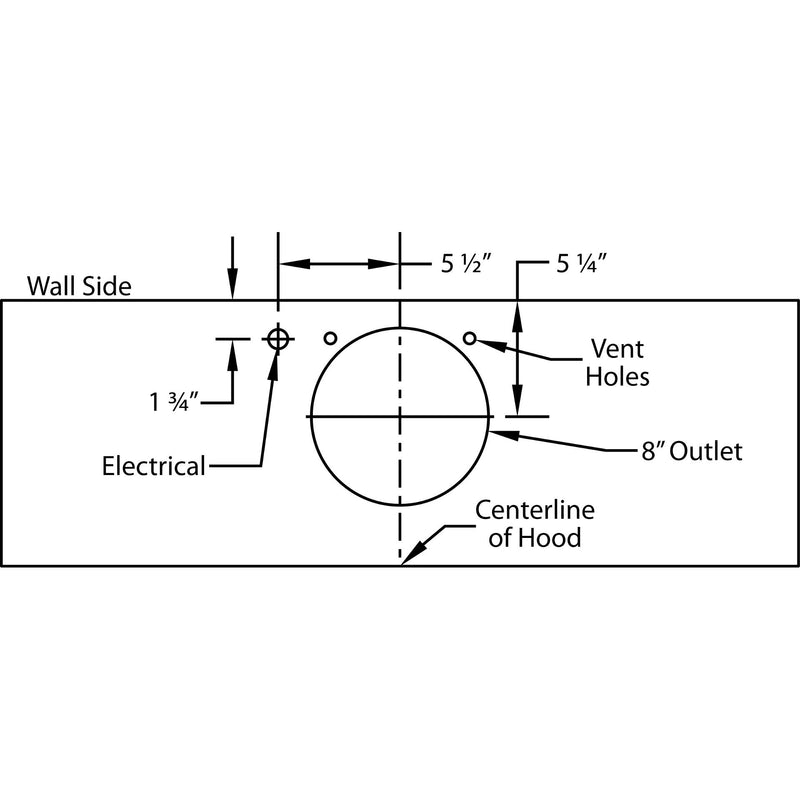

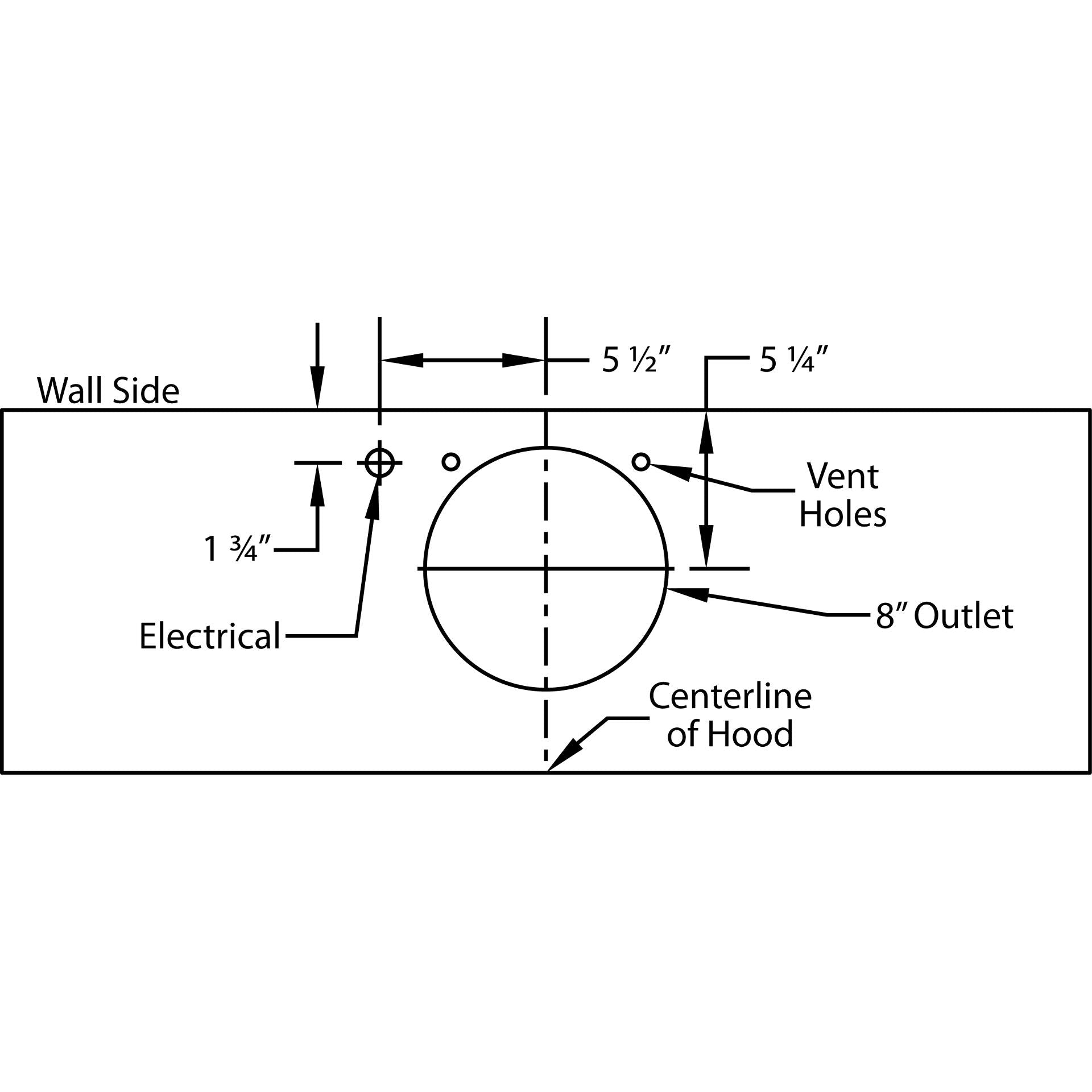

Ducting Information
• Duct Size 8"
• Sone 6.5
• Sone 6.5
Additional Information
• RPM: 1550
• 3 LED Lights
• Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems.
• 3 LED Lights
• Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems.
Electrical Information
Information
• 115 V
• 4.0 A
• 4.0 A

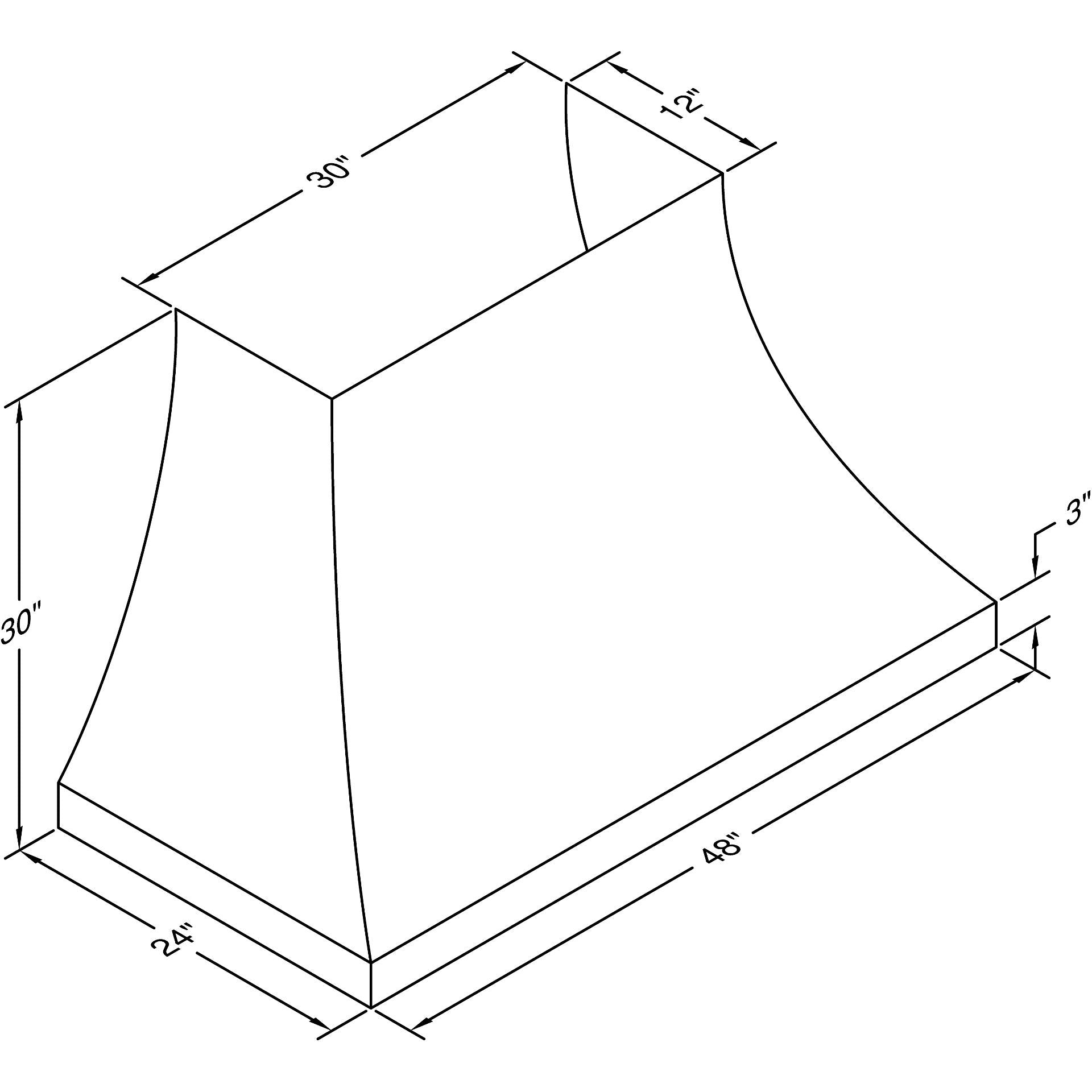

Dimensions
Class Width
48"
Width
48 inch(es) / 121.92 cm
Height
30 inch(es) / 76.2 cm
Depth
24 inch(es) / 60.96 cm
Warranty
Warranty
Limited 1 year
