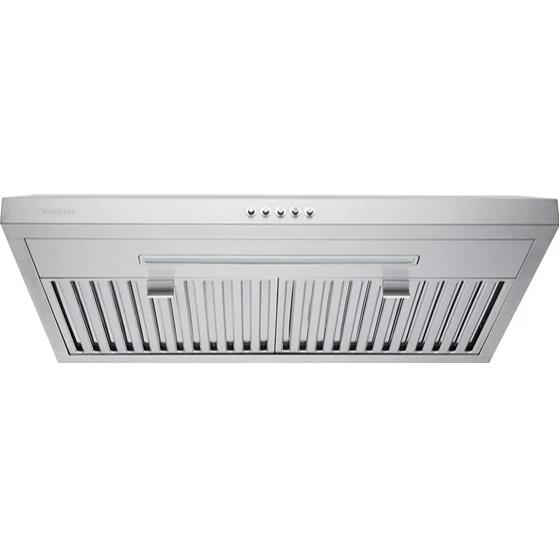

Description
The Vesta Charlotte 30-inch range hood delivers 500 CFM ventilation performance and features a new, brighter LED light bar to better illuminate the cooking area. Mechanical button controls and 3 fan speed settings provide simple and reliable operation.
1 / 1
Features
CHARLOTTE
• Powerful 500 CFM suction effectively removes smoke, steam, and cooking odors

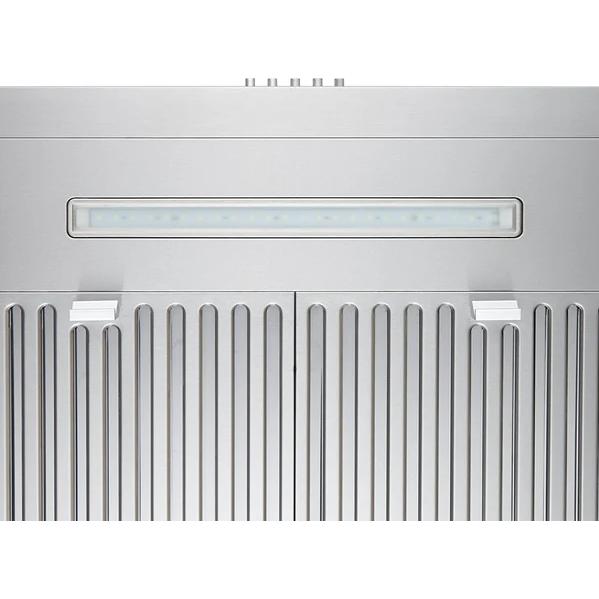

• Larger enhanced LED light bar provides brighter cooking illumination
• Ducted and ductless venting compatibility for flexible installation
• Includes option for carbon filter conversion (carbon filter not included)
• Flexible vent connections: top rectangular and back rectangular

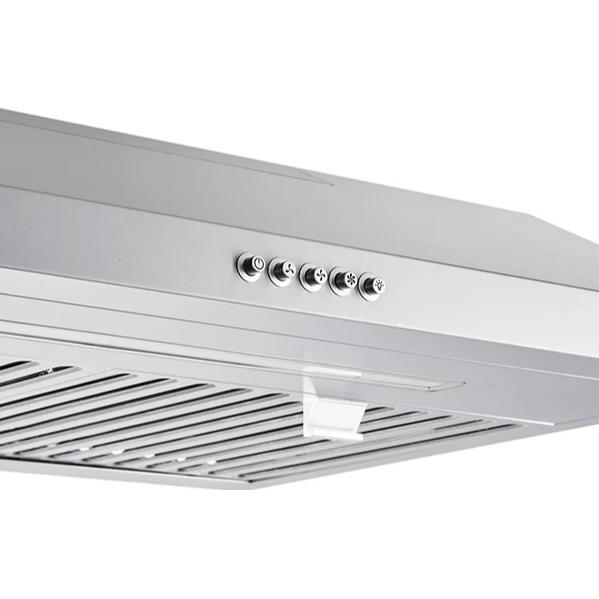

• 3 fan speeds controlled by mechanical buttons
• Quiet operation with noise level up to 65 dB at highest speed
• Lightweight design (9.5 kg) allows easy one-person installation
• Seamless stainless steel body for easy cleaning with a damp cloth
• Dishwasher-safe baffle filters for easy maintenance
• Wired electrical connection
• Larger enhanced LED light bar provides brighter cooking illumination
• Ducted and ductless venting compatibility for flexible installation
• Includes option for carbon filter conversion (carbon filter not included)
• Flexible vent connections: top rectangular and back rectangular
• 3 fan speeds controlled by mechanical buttons
• Quiet operation with noise level up to 65 dB at highest speed
• Lightweight design (9.5 kg) allows easy one-person installation
• Seamless stainless steel body for easy cleaning with a damp cloth
• Dishwasher-safe baffle filters for easy maintenance
• Wired electrical connection
Specifications
General
Series Name
Charlotte
Blower Included
Yes
Airflow
500 CFM
Style
Standard
Color
Silver
Manufacturer Color
Silver
Installation
Under-Cabinet
Features
Ducting Information
• Vent size: 10" × 3.25"
• Exhaust configuration: top (rectangular), back (rectangular)
• Exhaust configuration: top (rectangular), back (rectangular)
Speeds
3 Speeds
Additional Information
• Motor power: 125 W
• Motor type: AC
• Maximum airflow: 500 CFM
• Fan speed levels: 3
• Fan type: axial fan
• Minimum noise level: 35 dB
• Maximum noise level: 64 dB
• Filter type: baffle filter
• Number of filters: 2
• Filter maintenance: washable
• Light type and wattage: LED, 5 W
• Light base: proprietary
• Number of lights: 2
• Control type: mechanical buttons
• Motor type: AC
• Maximum airflow: 500 CFM
• Fan speed levels: 3
• Fan type: axial fan
• Minimum noise level: 35 dB
• Maximum noise level: 64 dB
• Filter type: baffle filter
• Number of filters: 2
• Filter maintenance: washable
• Light type and wattage: LED, 5 W
• Light base: proprietary
• Number of lights: 2
• Control type: mechanical buttons
Certifications and Approvals
Information
cETL
Dimensions
Class Width
30"
Width
29.7 inch(es) / 75.44 cm
Height
6.3 inch(es) / 16 cm
Depth
22 inch(es) / 55.88 cm
Weight
20.13 lb(s) / 9.13 kg
Warranty
Warranty
• 2-year parts and labor warranty
• Lifetime motors warranty
• Lifetime motors warranty
UPC
UPC#
675487201518
