YWFES3530RW
Season Saving
Description

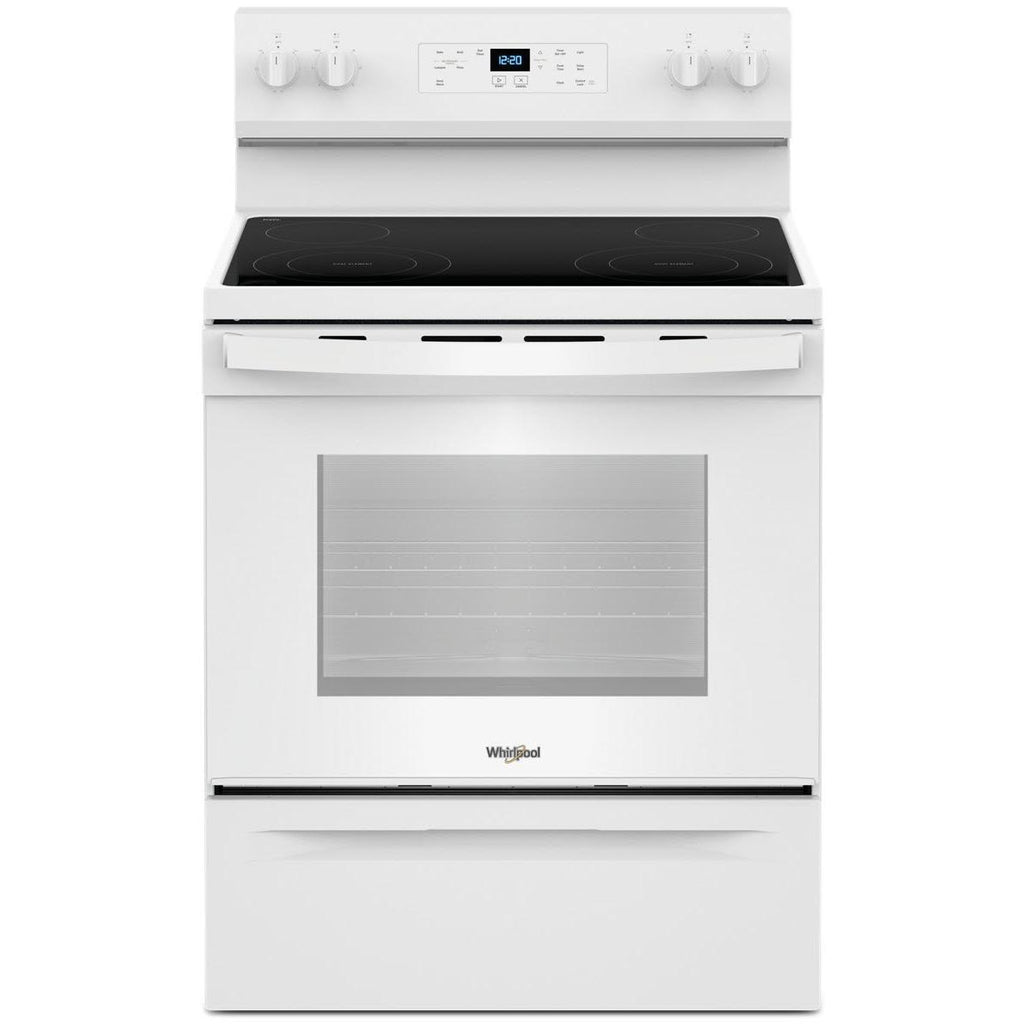

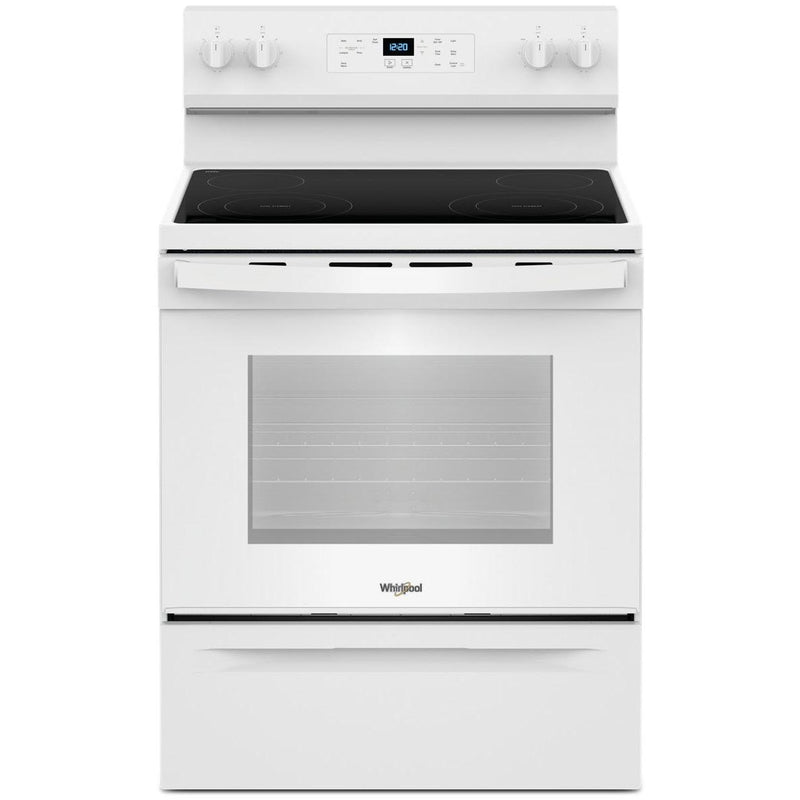

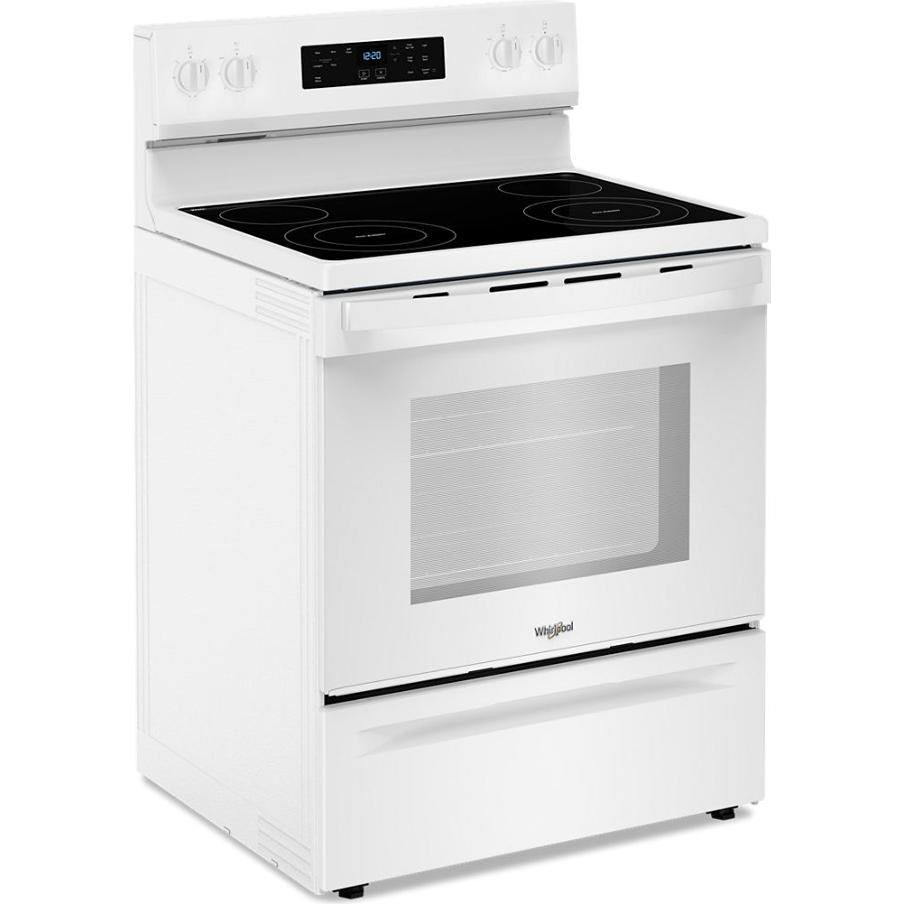

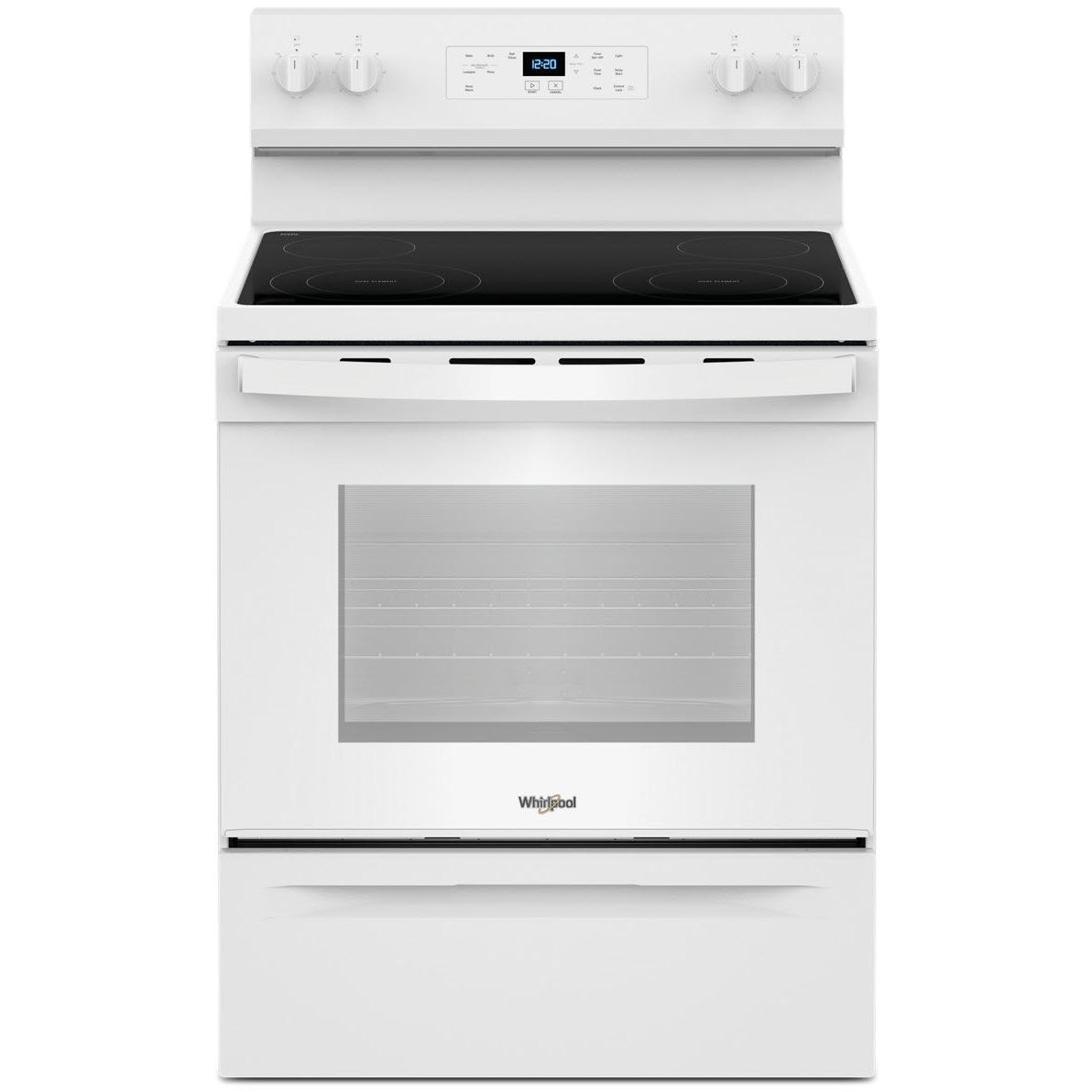

Make the most of your time in the kitchen with the Whirlpool 30 inch electric range, a self cleaning oven featuring dual electric elements and No Preheat Mode. This 5.3 cu ft conventional oven with Broil helps you add a toasty twist or melty magic to family classics, and features a built-in temperature sensor to help the oven Bake evenly. Plus, boil 40% faster* with two FlexHeat™ Dual Radiant Elements.
1 / 1
YWFES3530RW
Features

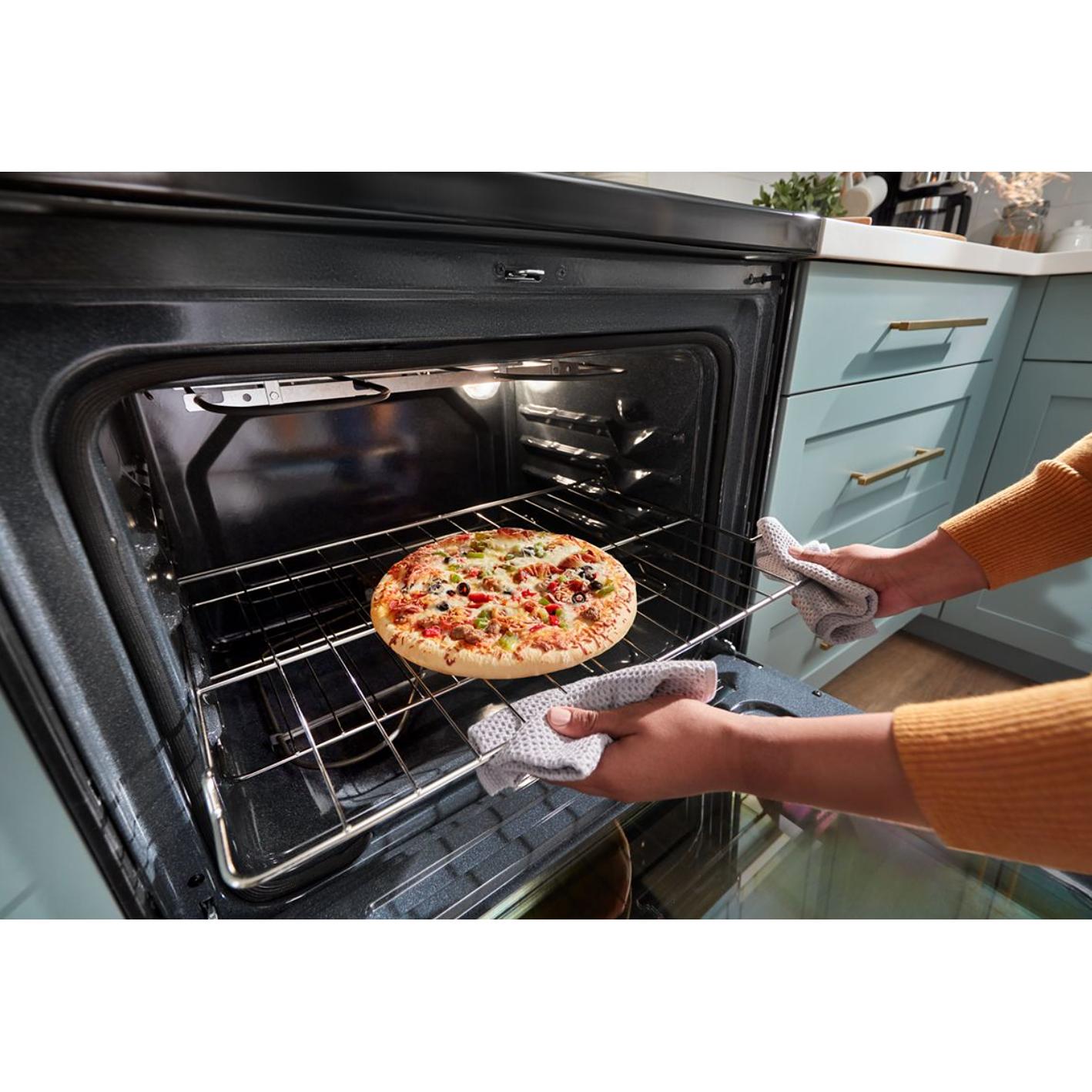

NO PREHEAT MODE
Take preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.

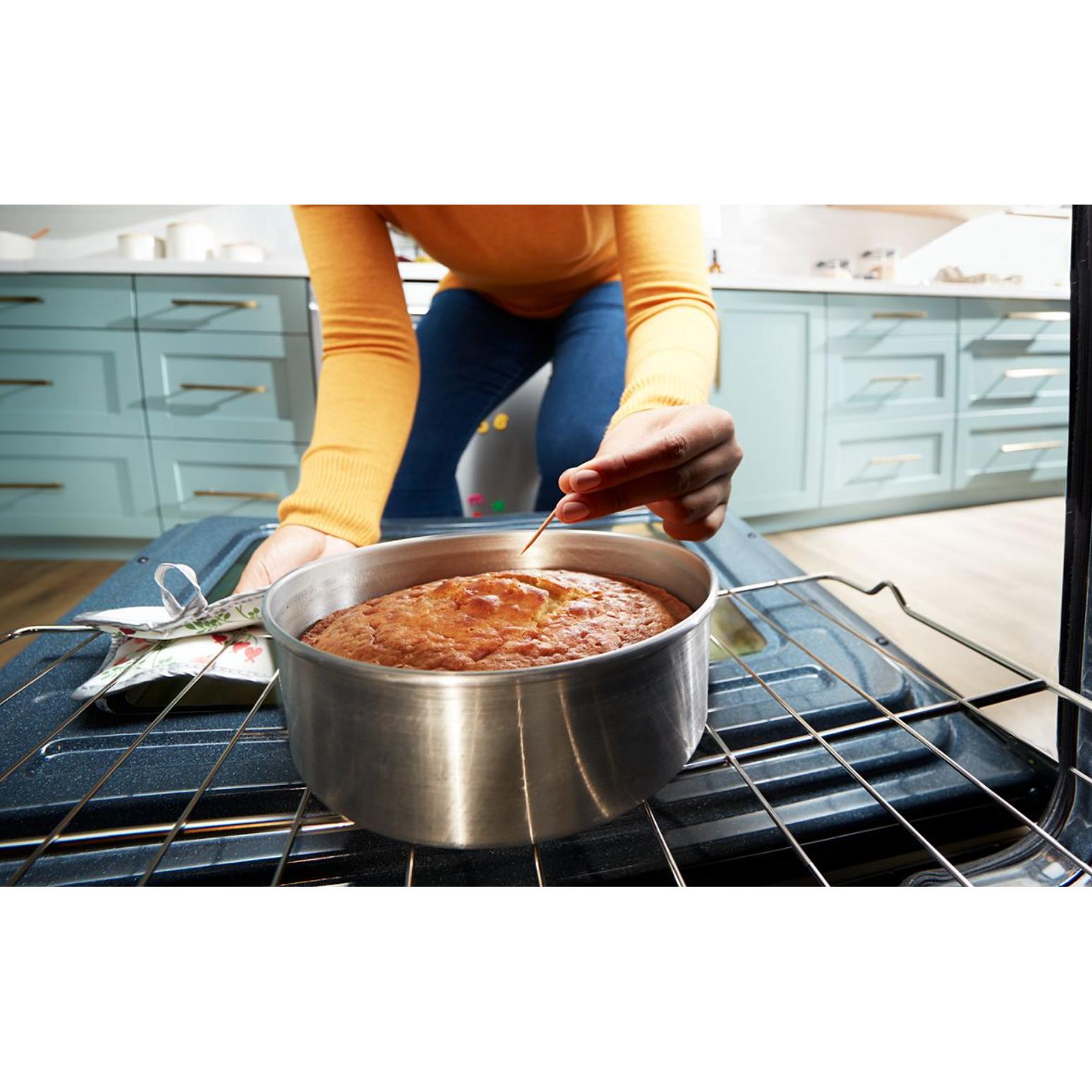

BAKE
Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.

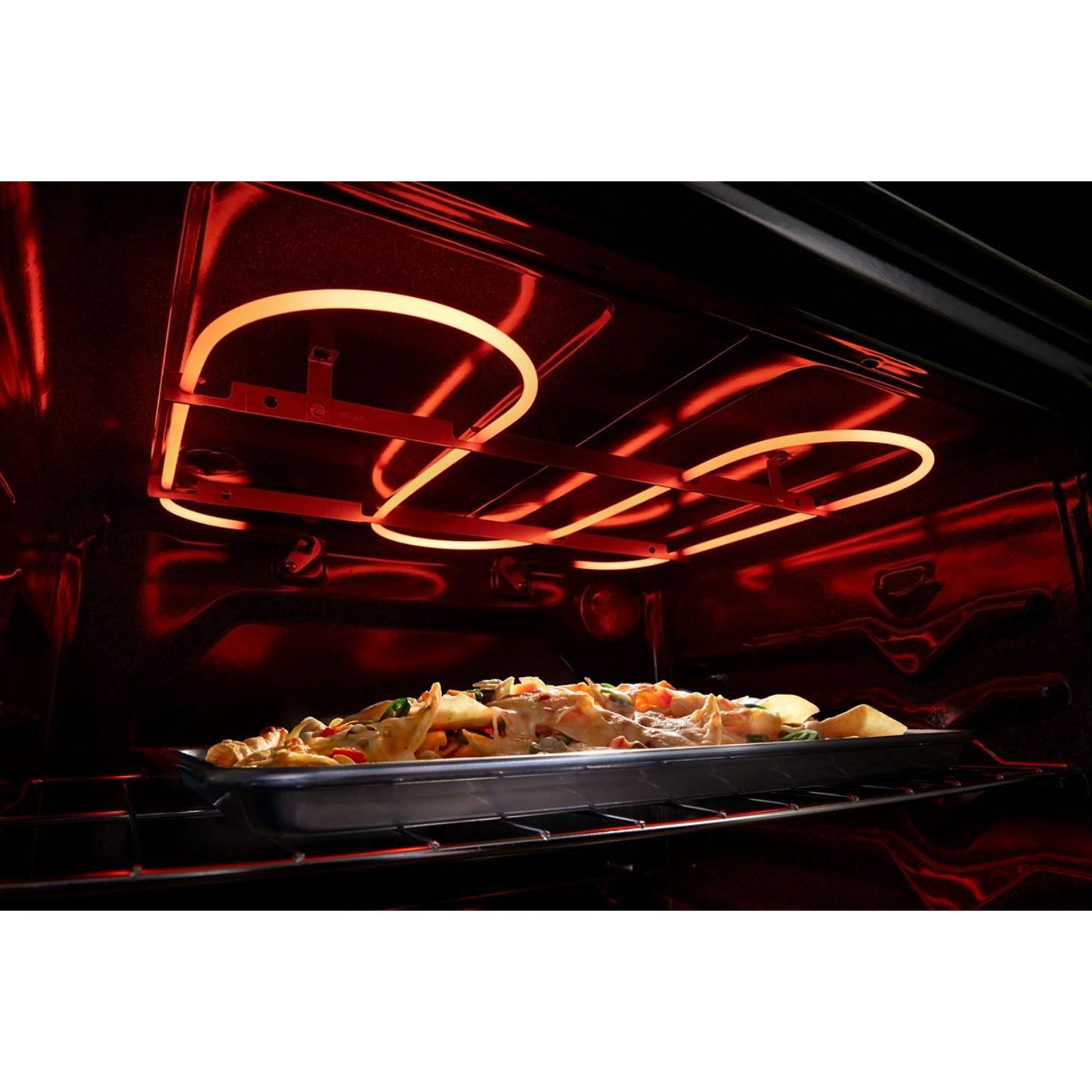

BROIL
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.

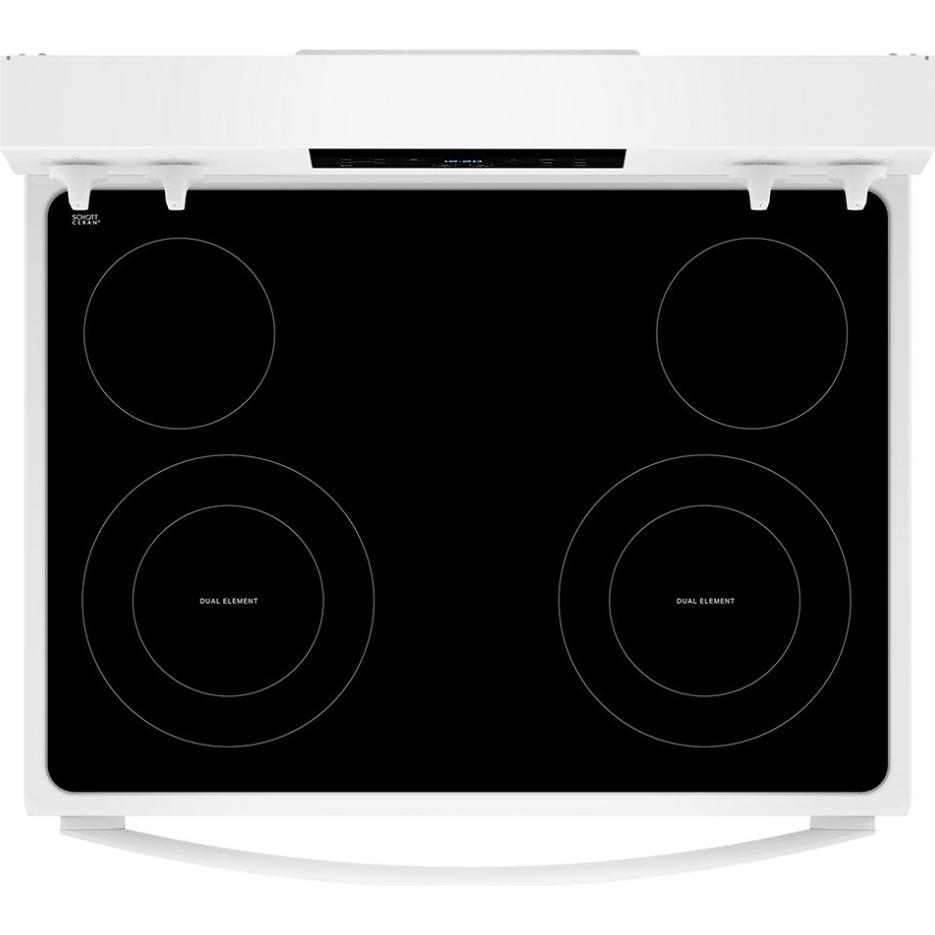

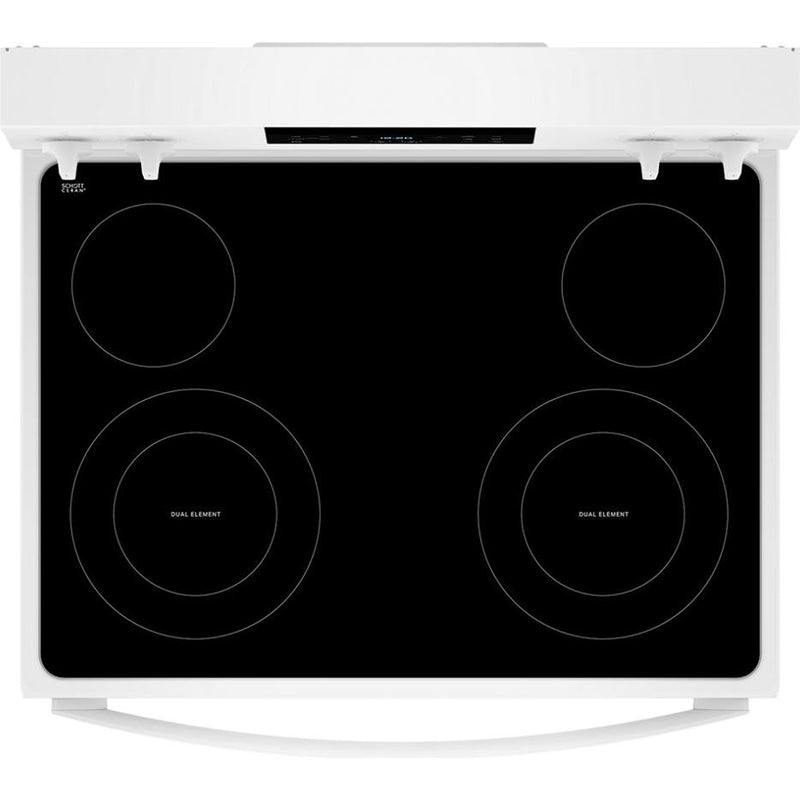

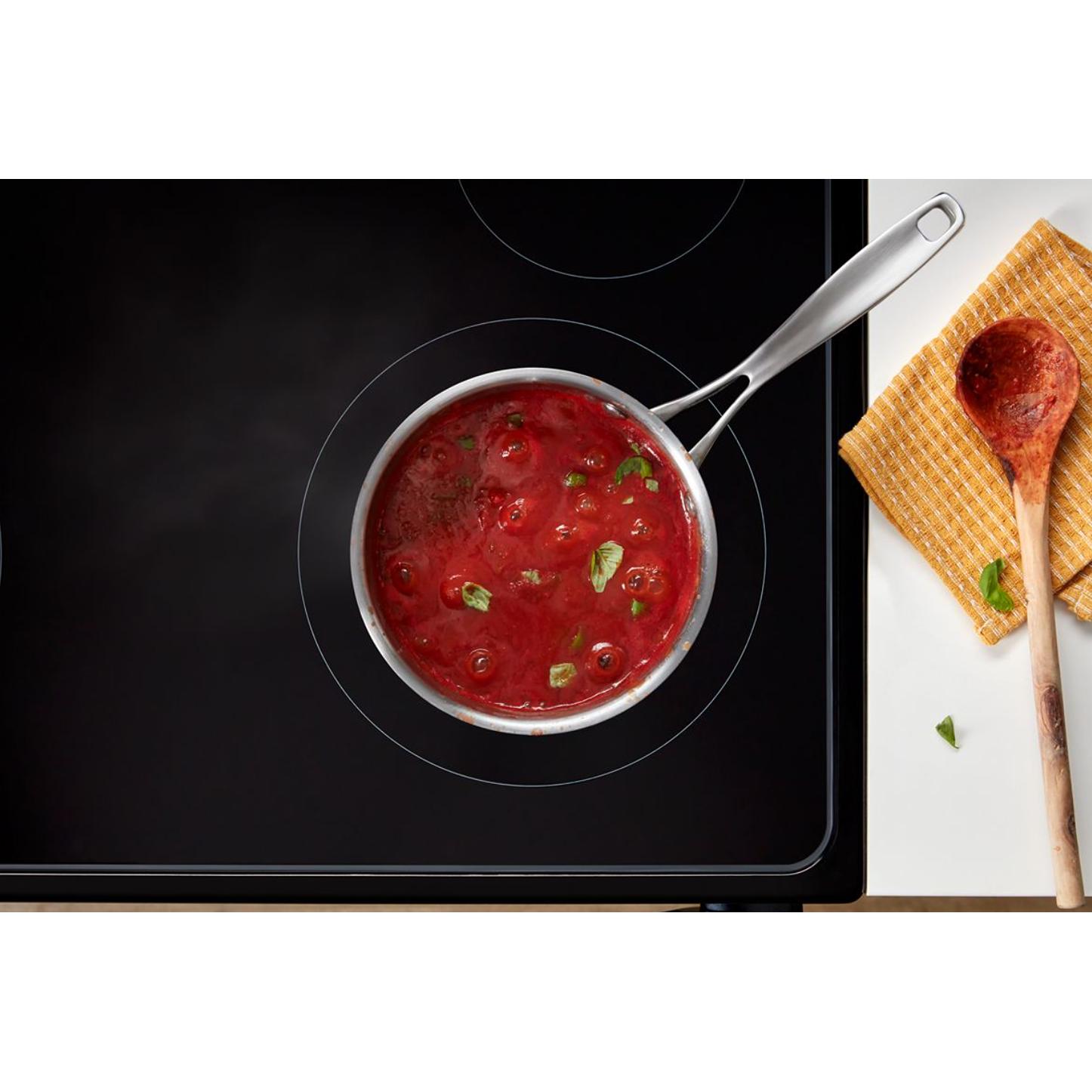

2 FLEXHEAT™ DUAL RADIANT ELEMENTS
Customize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring.
*When comparing the 9" element to the standard 6" element on the same unit.
*When comparing the 9" element to the standard 6" element on the same unit.
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
White
Manufacturer Color
White
Appliance Care
Self-Clean
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front Element Power: 3000W
• Left Rear Element Power: 1200W
• Right Front Element Power: 3000W
• Right Rear Element Power: 1200W
• Left Rear Element Power: 1200W
• Right Front Element Power: 3000W
• Right Rear Element Power: 1200W
Burner/Element Size
• Left Front Element Size: 9in./6 in
• Left Rear Element Size: 6 in
• Right Front Element Size: 9 in/6 in
• Right Rear Element Size: 6 in
• Left Rear Element Size: 6 in
• Right Front Element Size: 9 in/6 in
• Right Rear Element Size: 6 in
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.3 cu. ft.
Number of Ovens
Single
Programs
• Auto On
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Cook Time Indicator
• Delay Start
• Keep Warm Setting
• Oven Light
• Sabbath Mode
• Start Time
• Stop Time
• Timer
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Cook Time Indicator
• Delay Start
• Keep Warm Setting
• Oven Light
• Sabbath Mode
• Start Time
• Stop Time
• Timer
Features
Technologies
FlexHeat™ Dual Radiant Elements
Control Lock
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information

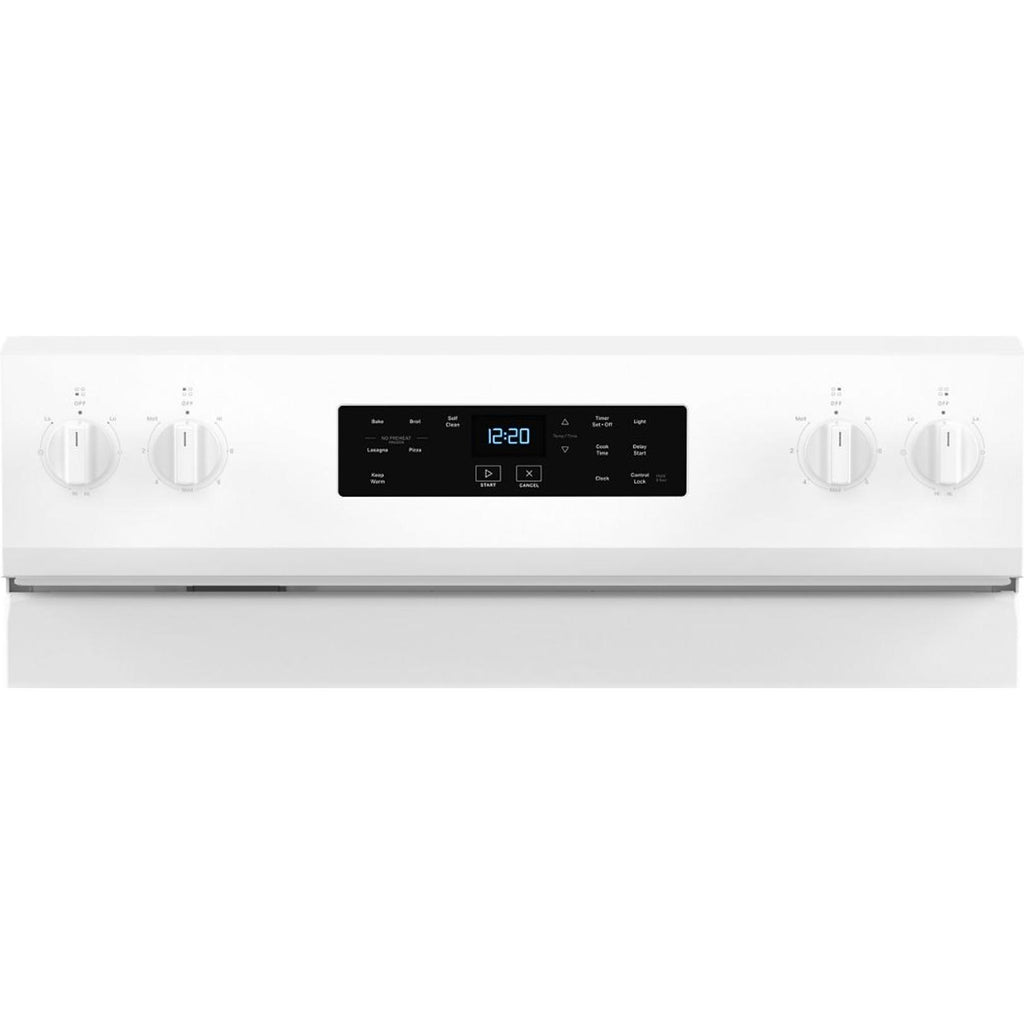

• Electronic Touch
• Bake Element Power: 2400W
• Broiler Element Power: 3400W
• Door Removable

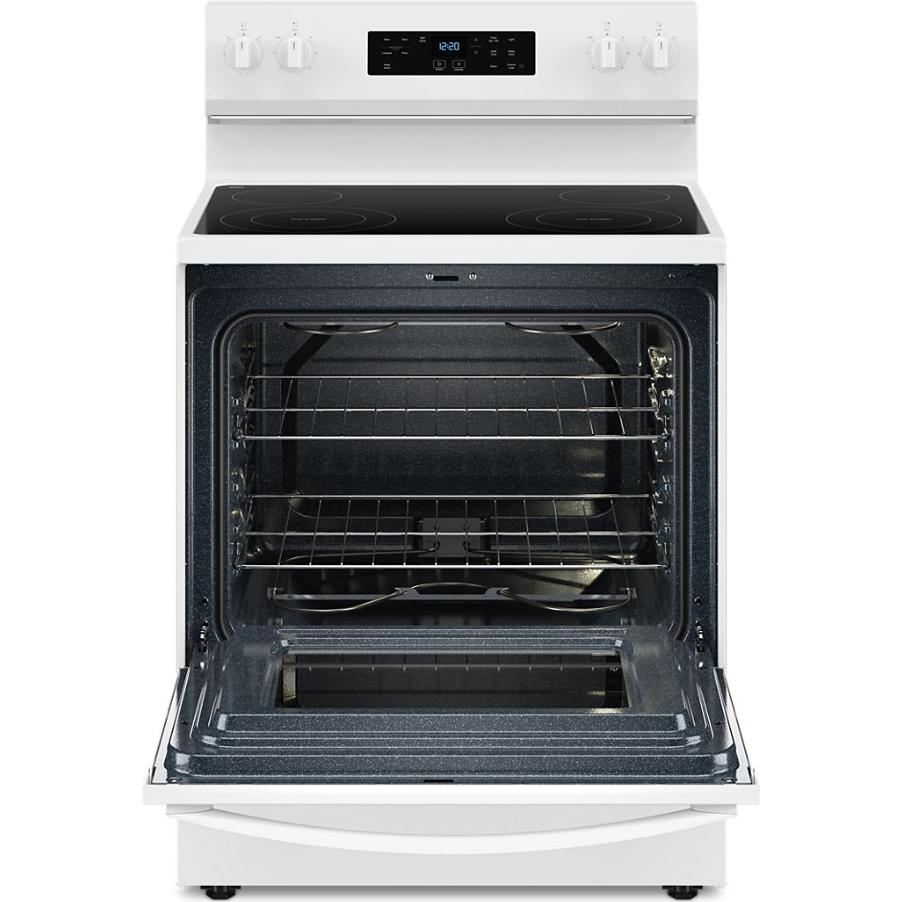

• 5 Rack Positions
• No Preheat Mode
• Bake Element Power: 2400W
• Broiler Element Power: 3400W
• Door Removable
• 5 Rack Positions
• No Preheat Mode
Electrical Information
Information
• 208 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Certifications and Approvals
Sabbath/Star-K
Yes
Information
CUL, UL
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.90 cm
Height
46.87 inch(es) / 119.06 cm
Depth (Without Handles)
25.31 inch(es) / 64.29 cm
Depth (Including Handles)
28 inch(es) / 71.12 cm
Weight
144.01 lb(s) / 65.32 kg
Additional Dimensions
• Cutout Depth: 60.96 cm, 24 in
• Cutout Height: 91.44 cm, 36 in
• Cutout Width: 76.20 cm, 30 in
• Depth With Door Open 90 Degree: 118.59 cm, 46.69 in
• Maximum Height: 121.60 cm, 47-7/8 in
• Oven Interior Depth: 46.99 cm, 18-1/2 in
• Oven Interior Height: 46.05 cm, 18.13 in
• Oven Interior Width: 62.23 cm, 24-1/2 in
• Cutout Height: 91.44 cm, 36 in
• Cutout Width: 76.20 cm, 30 in
• Depth With Door Open 90 Degree: 118.59 cm, 46.69 in
• Maximum Height: 121.60 cm, 47-7/8 in
• Oven Interior Depth: 46.99 cm, 18-1/2 in
• Oven Interior Height: 46.05 cm, 18.13 in
• Oven Interior Width: 62.23 cm, 24-1/2 in
Shipping Dimensions
Weight
159.99 lb(s) / 72.57 kg
Warranty
Warranty
1 Year
